TJA1027TK/20/1J
| Do pobrania | Download |
|---|---|
| Main description | LIN Transceiver 20kBd Automotive 8-Pin HVSON EP T/R |

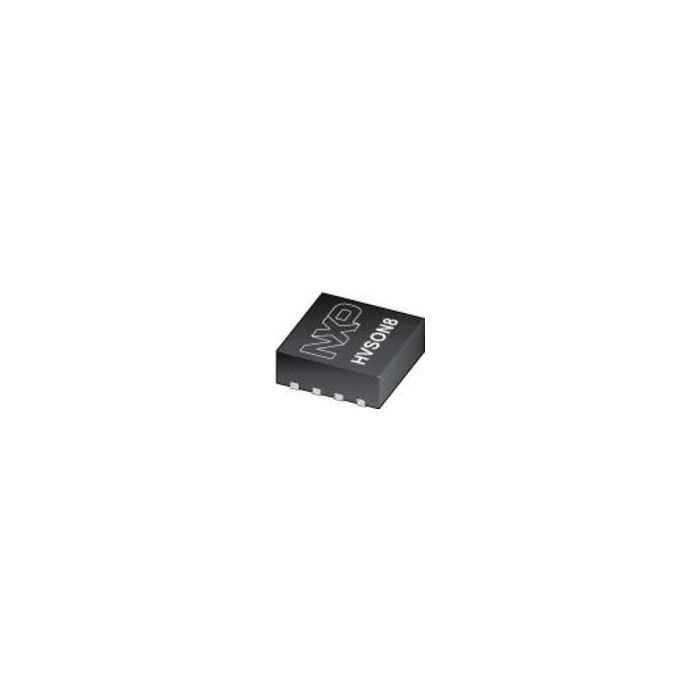

LIN Transceiver 20kBd Automotive 8-Pin HVSON EP T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 1
- Inventory 6
- PCNs 13
- MaskPart TJA1027TK201J%
Parametry
- Built-in Options N/A
- External Wake-up Pin Yes
- I/O Voltages for Controller (V) N/A
- LIN Bus Wake-up Capable Yes
- LIN Specifications LIN 2.0|LIN 2.1|LIN 2.2|LIN 2.2A|SAE J2602
- Maximum Data Rate (kBd) 20
- Maximum Dual Supply Voltage (V) N/R
- Maximum LIN Bus Voltage (V) 42
- Maximum Single Supply Voltage (V) 18
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum LIN Bus Voltage (V) -42
- Minimum Single Supply Voltage (V) 5
- Minimum Storage Temperature (°C) -55
- Power Supply Type Single
- Regulator Voltage (V) N/R
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 9|12|15
