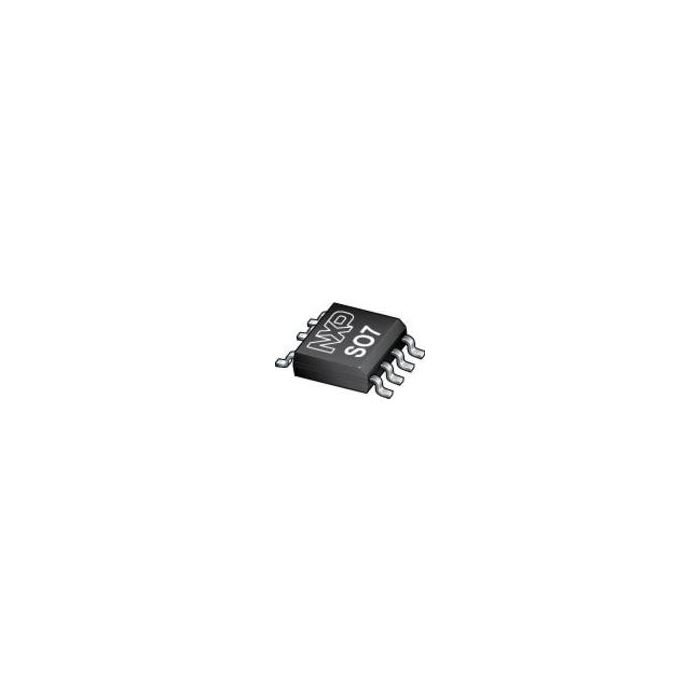

TEA1721BT/N1

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TEA1721BT_N1_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TEA1721BT/N1

AC/DC Switching Converters

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 33
  • Inventory 8*
  • PCNs 15
  • MaskPart TEA1721BTN1%
  • IntroductionDate Jan 24, 2012

Parametry

  • Maximum Operating Current (mA) 0.97
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 35
  • Maximum Under Voltage Lock Out (V) 9.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Minimum Supply Voltage (V) -0.3
  • Minimum Under Voltage Lock Out (V) 7.5
  • Soft Start Option Yes
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 53
  • Topology Flyback
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) 8.5

Więcej informacji

Do pobrania Download
Main description AC/DC Switching Converters
