TEA1111AT/C1,512

ProducentNXP SemiconductorsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TEA1111AT_C1,512_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TEA1111AT/C1,512

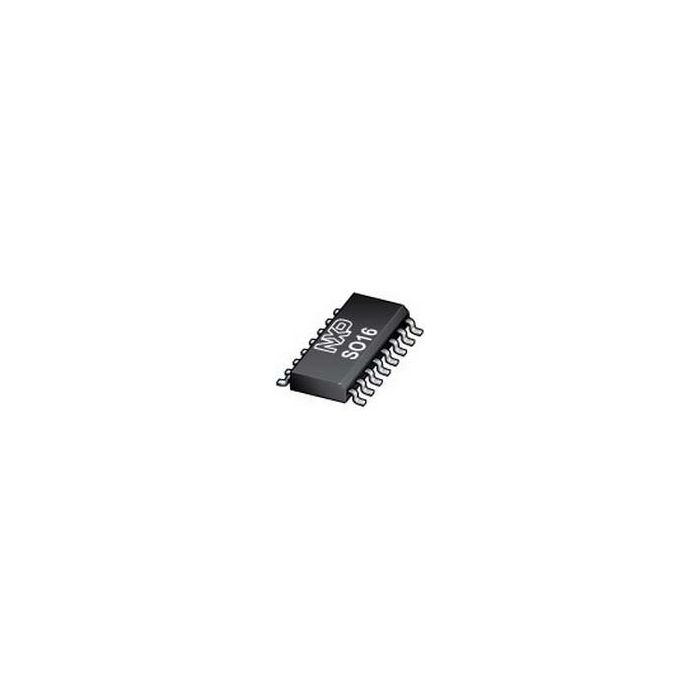

Speech Network Advanced 45.2dB 16-Pin SO Tube

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 14
  • MaskPart TEA1111ATC1%
  • IntroductionDate Sep 28, 1999

Parametry

  • Application Answering Machines|Cordless Telephones|Fax Machines|Telephone Sets
  • Category Advanced
  • Maximum Operating Supply Voltage (V) 3.55
  • Maximum Operating Temperature (°C) 75
  • Maximum Receiver Gain (dB) 28.4
  • Maximum Storage Temperature (°C) 125
  • Maximum Transmitter Gain (dB) 45.2
  • Minimum Operating Supply Voltage (V) 2.95
  • Minimum Operating Temperature (°C) -25
  • Minimum Storage Temperature (°C) -40
  • Supplier Temperature Grade N/A
  • Supply Current (mA) 1.4|-3
  • Typical Operating Supply Voltage (V) 3.25|3.3
  • Typical Supply Current (mA) 1.15|-1

Więcej informacji

Do pobrania Download
Main description Speech Network Advanced 45.2dB 16-Pin SO Tube
