TEA1094A/C1

ProducentNXP SemiconductorsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TEA1094A_C1_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TEA1094A/C1

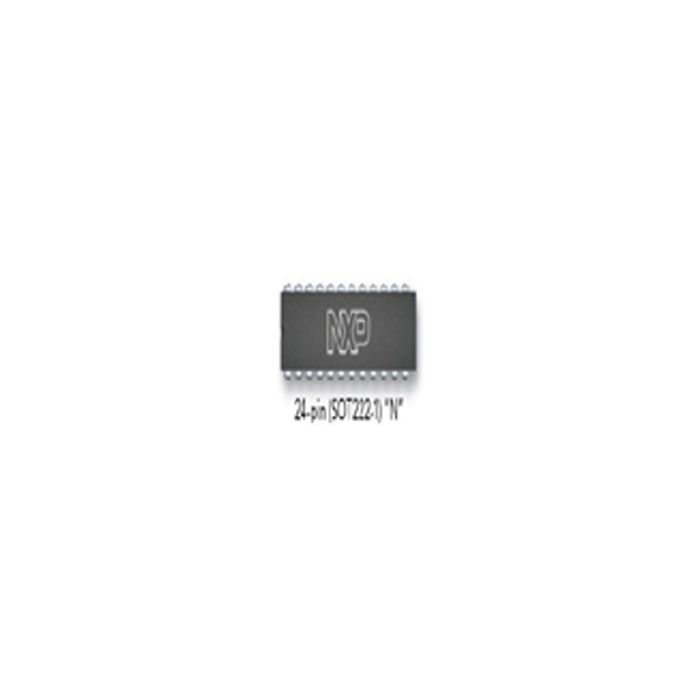

Speech Network Standard 18dB 24-Pin PDIP

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • PCNs 13
  • MaskPart TEA1094AC1%
  • IntroductionDate Apr 08, 1998

Parametry

  • Application Answering Machines|Battery or Line-Powered Telephone Sets with Hands-Free|Cordless Telephones|Fax Machines|listening-In Functions
  • Category Standard
  • Maximum Operating Supply Voltage (V) 12
  • Maximum Operating Temperature (°C) 75
  • Maximum Receiver Gain (dB) 21
  • Maximum Transmitter Gain (dB) 18
  • Minimum Operating Supply Voltage (V) 3.3
  • Minimum Operating Temperature (°C) -25
  • Supplier Temperature Grade N/A
  • Supply Current (mA) 4.4
  • Typical Operating Supply Voltage (V) 5|9
  • Typical Supply Current (mA) 3.1

Więcej informacji

Do pobrania Download
Main description Speech Network Standard 18dB 24-Pin PDIP
