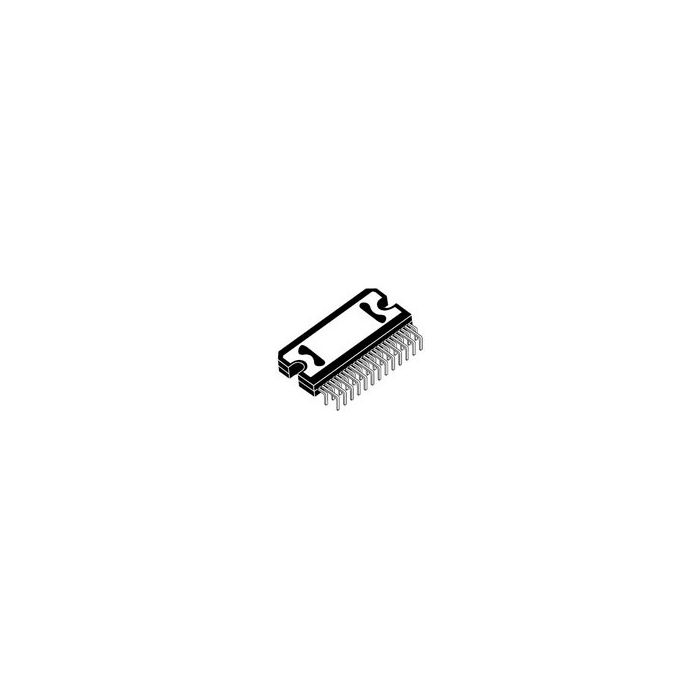

TDA7560H
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 4-CH Stereo 55W Class-AB Automotive 25-Pin(25+Tab) FLEXIWATT(Horizontal) Tube |
Audio Amp Speaker 4-CH Stereo 55W Class-AB Automotive 25-Pin(25+Tab) FLEXIWATT(Horizontal) Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 3
- Inventory 3
- PCNs 15
- MaskPart TDA7560H%
- IntroductionDate Dec 20, 2001
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 4
- Maximum Output Current (mA) 10000
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 80000
- Maximum Quiescent Current (mA) 320@13.2V
- Maximum Single Supply Voltage (V) 18
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) N/A
- Output Signal Type Differential
- Output Type 4-Channel Stereo
- Power Supply Type Single
- Rail to Rail Rail to Rail Output
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.015%@2Ohm@15W|0.006%@4Ohm@4W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 55x4@2Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 200@13.2V
- Typical Single Supply Voltage (V) N/A
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 26
