TDA7498TR
| Do pobrania | Download |
|---|---|

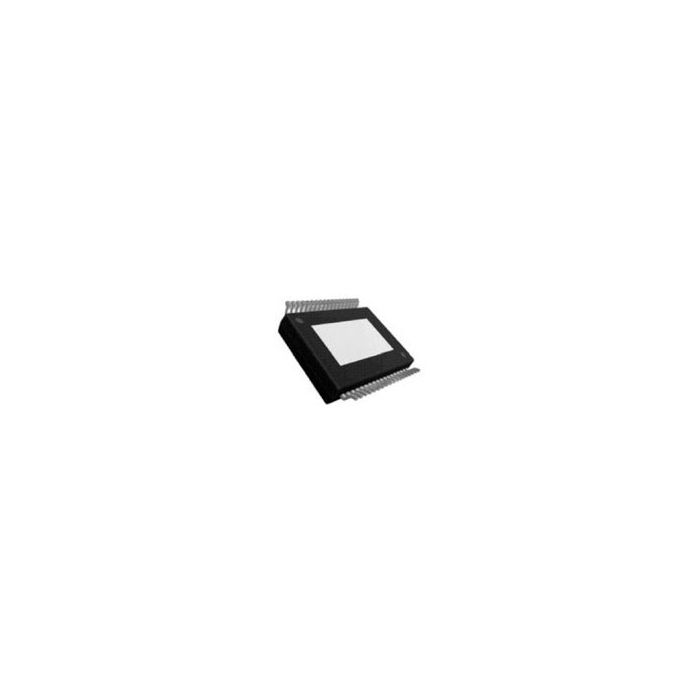

| Main description | Audio Amp Speaker 2-CH Stereo 100W Class-D 36-Pin PowerSSO EP T/R |
Audio Amp Speaker 2-CH Stereo 100W Class-D 36-Pin PowerSSO EP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 4
- PCNs 12
- MaskPart TDA7498%
- IntroductionDate Aug 11, 2009
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 20000(Typ)
- Maximum Quiescent Current (mA) 60@36V
- Maximum Single Supply Voltage (V) 39
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 14
- Minimum Storage Temperature (°C) -40
- Output Signal Type Differential
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.1%@6Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 100x2@6Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 40@36V
- Typical Single Supply Voltage (V) 15|18|24|28
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 37.6
