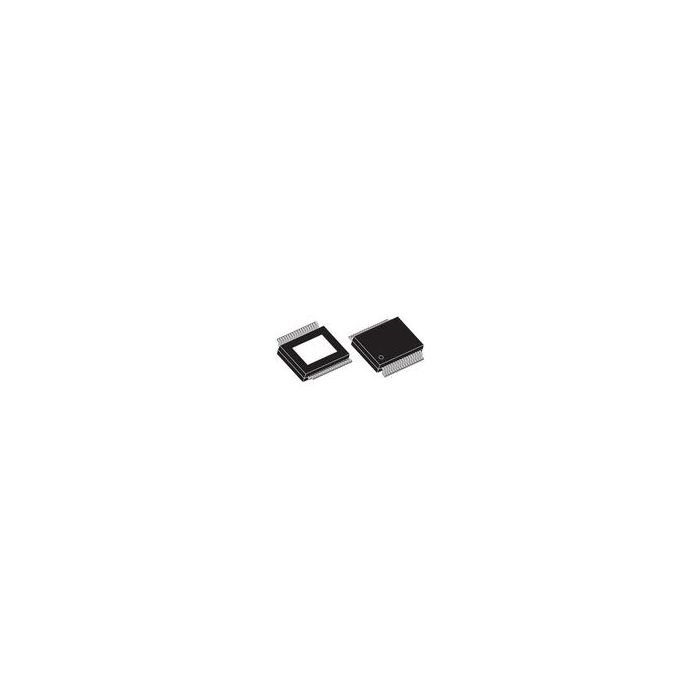

TDA7492PE
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono/2-CH Stereo 90W Class-D 36-Pin PowerSSO EP Tube |
Audio Amp Speaker 1-CH Mono/2-CH Stereo 90W Class-D 36-Pin PowerSSO EP Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 10
- PCNs 10
- MaskPart TDA7492PE%
- IntroductionDate Nov 17, 2014
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 26
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Load Resistance (Ohm) 3
- Minimum Single Supply Voltage (V) 7
- Output Signal Type Differential|Single
- Output Type 1-Channel Mono|2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.04%@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 90x1@3Ohm|41x2@6Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 40@22V
- Typical Single Supply Voltage (V) 9|12|15|18|24
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 32.8
