TDA7492MV13TR
| Do pobrania | Download |
|---|---|

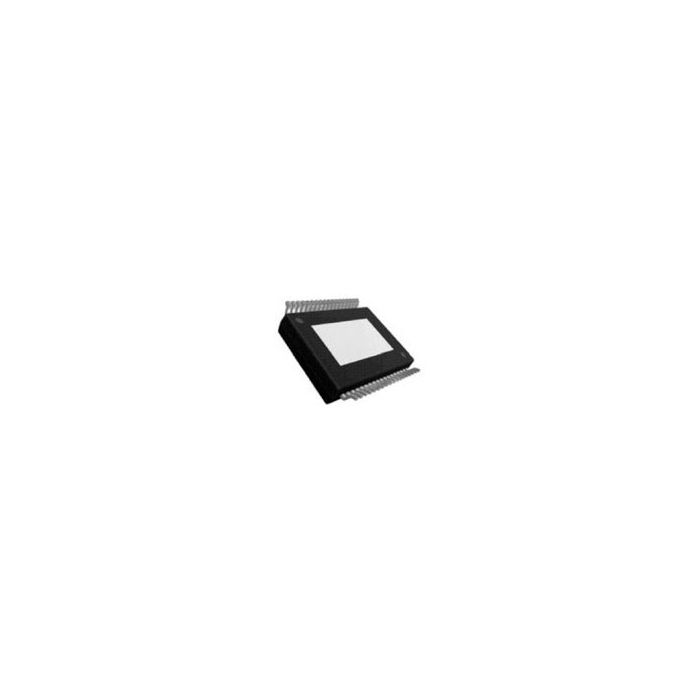

| Main description | Audio Amp Speaker 1-CH Mono 50W Class-D 36-Pin PowerSSO T/R |
Audio Amp Speaker 1-CH Mono 50W Class-D 36-Pin PowerSSO T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 11
- Inventory 4
- PCNs 14
- MaskPart TDA7492MV13%
- IntroductionDate Oct 20, 2009
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 4000(Typ)
- Maximum Quiescent Current (mA) 35@25V
- Maximum Single Supply Voltage (V) 26
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 10
- Minimum Storage Temperature (°C) -40
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.1%@8Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 50x1@6Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 26@25V
- Typical Single Supply Voltage (V) 12|15|18|24
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 33.6
