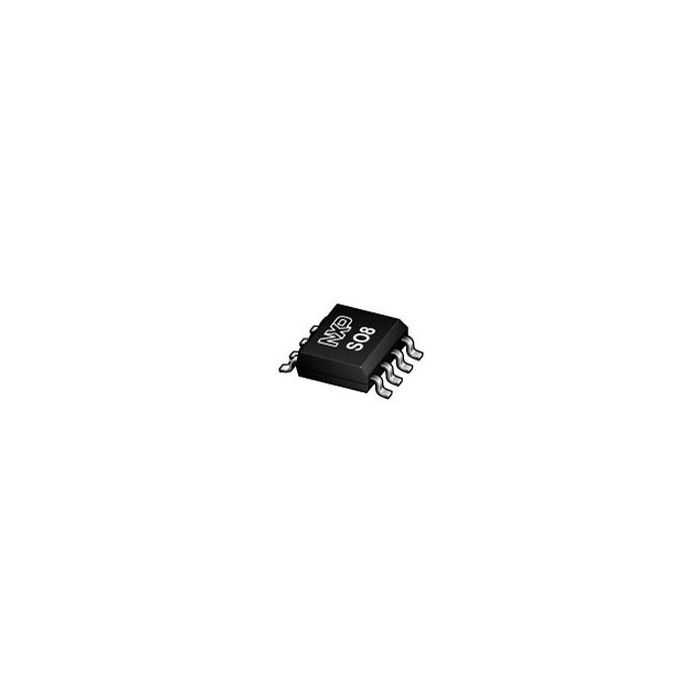

TDA3664AT/N1,118

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TDA3664AT_N1,118_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TDA3664AT/N1,118

LDO Regulator Pos 5V 0.1A 8-Pin SO T/R

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • Inventory 4
  • PCNs 23
  • MaskPart TDA3664ATN1%
  • IntroductionDate Aug 11, 1999
  • AliasParts 935262697118TDA3664ATD-T

Parametry

  • Accuracy (%) N/A
  • Junction to Ambient N/A
  • Junction to Case N/A
  • Line Regulation 50mV
  • Load Regulation 50mV
  • Maximum Dropout Voltage @ Current (V) 0.3@50mA
  • Maximum Input Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.1
  • Maximum Power Dissipation (mW) 800
  • Maximum Quiescent Current (mA) 0.03
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 5
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Over Current Protection|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.18@50mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.015

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 5V 0.1A 8-Pin SO T/R
