TDA1572TD-T

ProducentNXP SemiconductorsAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
TDA1572TD-T_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TDA1572TD-T

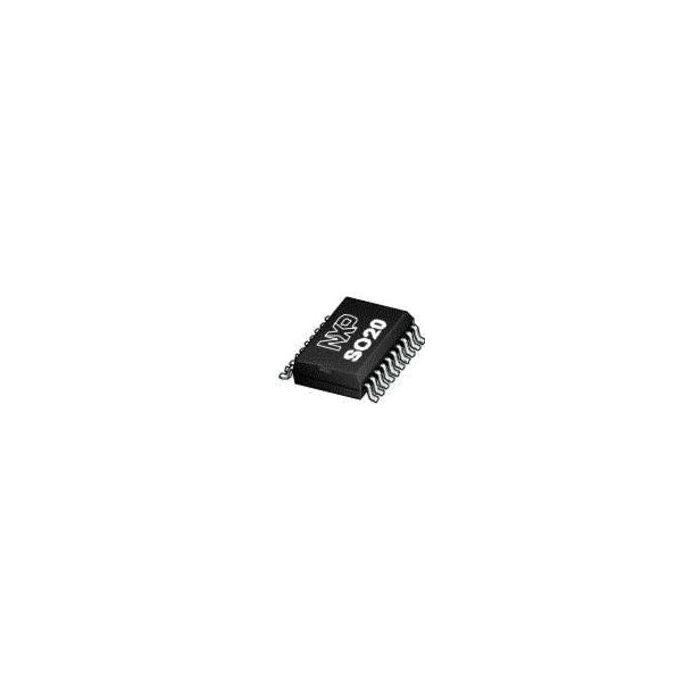

RF Receiver AM 8.5V 20-Pin SO T/R

Informacje podstawowe

  • ProducentNXP Semiconductors
  • Automotive No

Informacje dodatkowe

  • Crosses 10
  • PCNs 13
  • MaskPart TDA1572TD%
  • IntroductionDate May 01, 1992

Parametry

  • Category Receiver
  • Maximum Data Rate N/A
  • Maximum Operating Supply Voltage 14V
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 500
  • Maximum RF Operating Frequency (MHz) 60
  • Maximum RF Operating Frequency Range (MHz) 0.04 to 100
  • Minimum Operating Supply Voltage 7.5V
  • Minimum Operating Temperature (°C) -40
  • Modulation Technique AM
  • Operating Band Frequency (MHz) 0.1 to 60
  • Operating Supply Voltage 8.5V
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage 8.5V

Więcej informacji

Do pobrania Download
Main description RF Receiver AM 8.5V 20-Pin SO T/R
