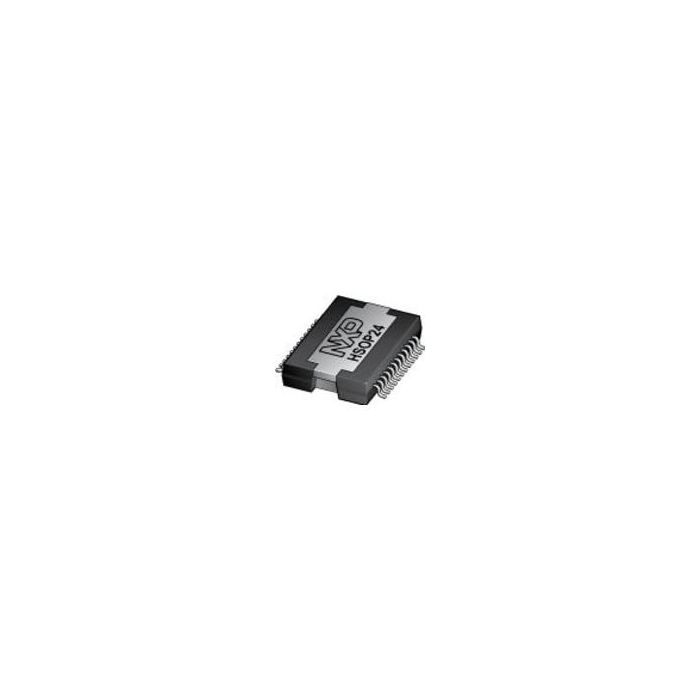

TDA1566TH/N1C,118
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 2-CH Stereo 92W Class-AB Automotive 24-Pin HSOP T/R |
Audio Amp Speaker 2-CH Stereo 92W Class-AB Automotive 24-Pin HSOP T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 1
- PCNs 18
- MaskPart TDA1566THN1C%
- IntroductionDate Apr 05, 2006
- AliasParts 935284624118TDA1566TH/N1C-T
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 4
- Maximum Output Current (mA) 13000
- Maximum Output Power x Channels @ Load (W) 150x2@1Ohm
- Maximum Power Dissipation (mW) 80000
- Maximum Quiescent Current (mA) 220@14.4V
- Maximum Single Supply Voltage (V) 18
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) 60
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) N/A
- Output Signal Type Differential
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.2%@2Ohm@12W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 92x2@1Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 180@14.4V
- Typical Single Supply Voltage (V) 14.4
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 26
