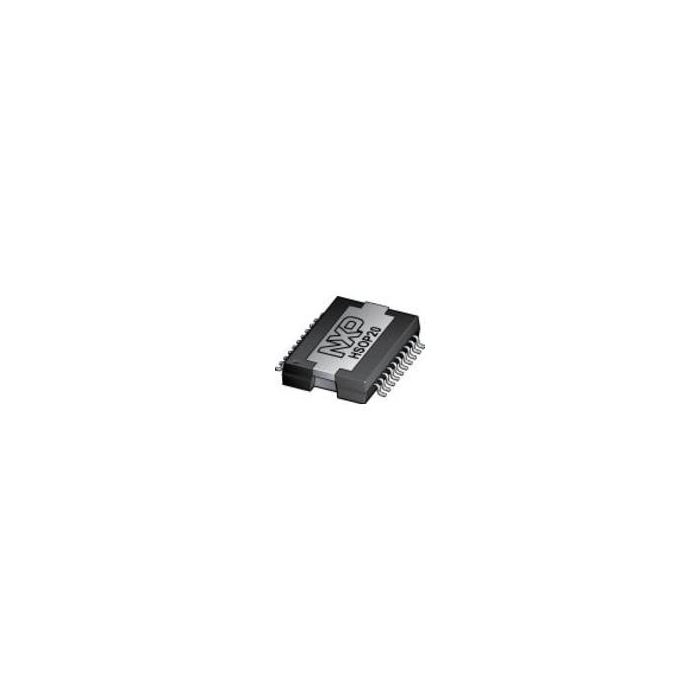

TDA1565TH/N1C,118
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 2-CH Stereo 60W Class-AB Automotive 20-Pin HSOP T/R |
Audio Amp Speaker 2-CH Stereo 60W Class-AB Automotive 20-Pin HSOP T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 2
- PCNs 19
- MaskPart TDA1565THN1C%
- IntroductionDate Aug 13, 2003
- AliasParts 935284504118TDA1565TH/N1C-T
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 2
- Maximum Output Current (mA) 8000
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 60000
- Maximum Quiescent Current (mA) 150@14.4V
- Maximum Single Supply Voltage (V) 18
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) 80(Typ)
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 6
- Output Signal Type Differential
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.1%@2Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 60x2@2Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 95@14.4V
- Typical Single Supply Voltage (V) 14.4
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 26
