TDA1558Q/N1,112

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
TDA1558Q_N1,112_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / TDA1558Q/N1,112

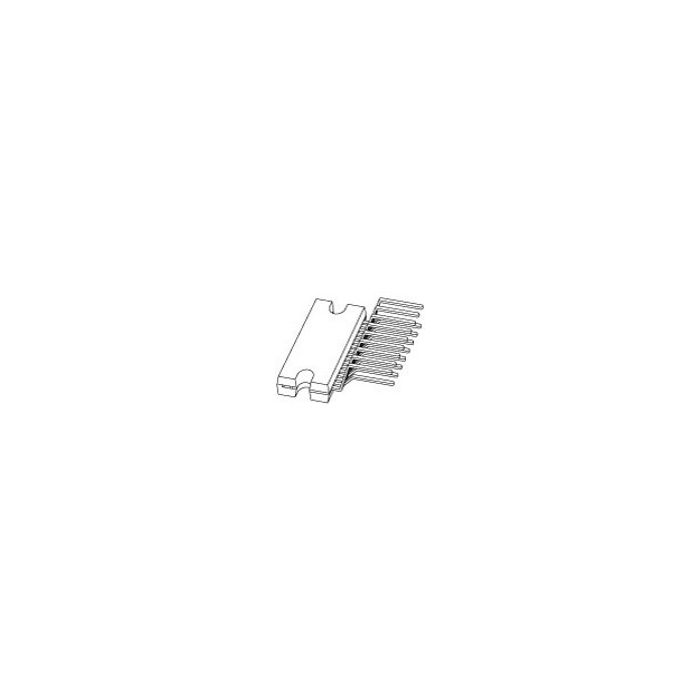

Audio Amp Speaker 2-CH Stereo/4-CH Stereo 22W Class-B Automotive 17-Pin DBS17P Bulk

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 2
  • PCNs 15
  • MaskPart TDA1558QN1%
  • IntroductionDate May 01, 1992
  • AliasParts 935043920112

Parametry

  • Amplifier Type Class-B
  • Function Speaker
  • Input Signal Type Differential
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) N/A
  • Maximum Load Resistance (Ohm) 4
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (mA) 6000
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 60000
  • Maximum Quiescent Current (mA) 160@14.4V
  • Maximum Single Supply Voltage (V) 18
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) N/A
  • Minimum Single Supply Voltage (V) 6
  • Output Signal Type Differential|Single
  • Output Type 2-Channel Stereo|4-Channel Stereo
  • Power Supply Type Single
  • Rail to Rail N/A
  • Supplier Temperature Grade N/A
  • Total Harmonic Distortion Noise 0.1%@4Ohm@1W
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Power x Channels @ Load (W) 22x2@4Ohm|11x4@2Ohm
  • Typical PSRR (dB) N/A
  • Typical Quiescent Current (mA) 80@14.4V
  • Typical Single Supply Voltage (V) 14.4
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 46

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 2-CH Stereo/4-CH Stereo 22W Class-B Automotive 17-Pin DBS17P Bulk
