TDA1517ATW/N1,112
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono/2-CH Stereo 8W Class-AB 20-Pin HTSSOP EP Bulk |

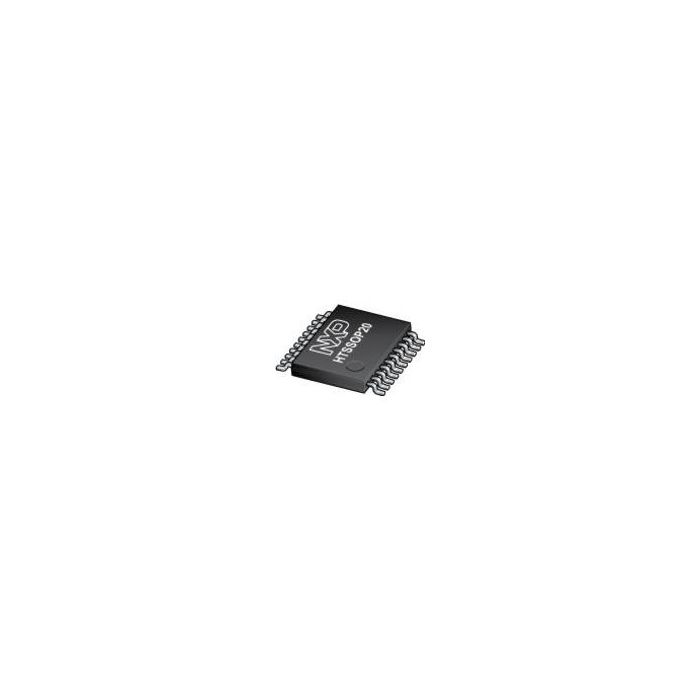

Audio Amp Speaker 1-CH Mono/2-CH Stereo 8W Class-AB 20-Pin HTSSOP EP Bulk
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- PCNs 19
- MaskPart TDA1517ATWN1%
- IntroductionDate Feb 14, 2001
- AliasParts 935268373112
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) 4000
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 5000
- Maximum Quiescent Current (mA) 80@12V
- Maximum Single Supply Voltage (V) 18
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 6
- Output Signal Type Differential|Single
- Output Type 1-Channel Mono|2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.03%@8Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 8x1@8Ohm|4x2@4Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 40@12V
- Typical Single Supply Voltage (V) 12
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 26
