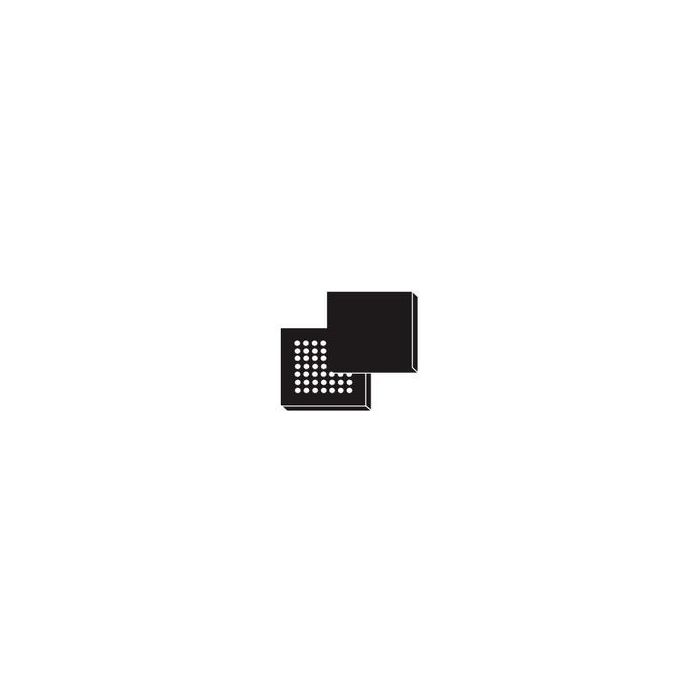

STM32L071CZY6TR
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 49-Pin WLCSP T/R |
MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 49-Pin WLCSP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 16
- Inventory 3
- PCNs 17
- MaskPart STM32L071CZY6%
Parametry
- ADC Channels 13
- ADC Resolution (bit) 12
- Analog Comparators 2
- CAN 0
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM Cortex M0+
- Display Driver N/A
- Ethernet 0
- Ethernet Interface Type N/A
- Ethernet Speed N/A
- Family Name STM32L
- I2C 3
- I2S 1
- Instruction Set Architecture RISC
- Interface Type I2C/I2S/SPI/UART/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 32
- Maximum Clock Rate (MHz) 32
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 417
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 40
- Number of Timers 7
- PWM N/A
- Parallel Master Port No
- Program Memory Size 192KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 20KB
- Real Time Clock Yes
- SPI 6
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 1
- USART 4
- USB 0
- Watchdog 2
