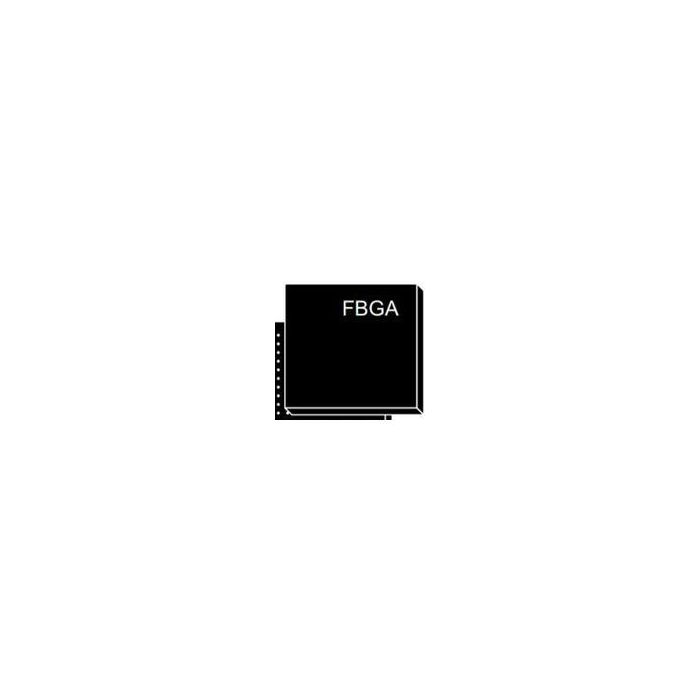

STM32H745IIK6
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit ARM Cortex M7/M4 RISC 2MB Flash 3.3V 201-Pin UFBGA Tray |
MCU 32-bit ARM Cortex M7/M4 RISC 2MB Flash 3.3V 201-Pin UFBGA Tray
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 2
- PCNs 10
- MaskPart STM32H745IIK6%
Parametry
- ADC Channels 36/36/36
- ADC Resolution (bit) 16/16/16
- CAN 2
- Core Architecture ARM
- DAC Channels 2
- DAC Resolution (bit) 12
- Data Bus Width (bit) 32
- Device Core ARM Cortex M7/M4
- Ethernet 0
- Family Name STM32
- I2C 4
- I2S 3
- Instruction Set Architecture RISC
- Interface Type CAN/I2C/I2S/SPI/UART/USART/USB
- Maximum CPU Frequency (MHz) 480
- Maximum Clock Rate (MHz) 480
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Triple
- Number of DACs Single
- Number of Programmable I/Os 128
- Number of Timers 18
- Program Memory Size 2MB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 1060KB
- SPI 6
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- UART 5
- USART 4
- USB 2
