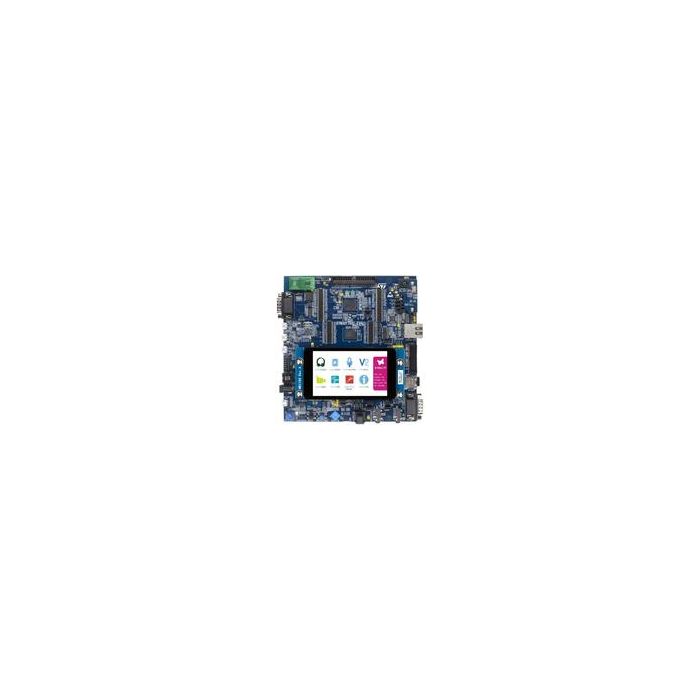

STM32F769I-EVAL
| Do pobrania | Download |
|---|---|
| Main description | STM32F769NI Microcontroller Evaluation Board 34.52MB RAM 16MB/64MB/4GB NAND Flash/NOR Flash/SPI NOR Flash |
STM32F769NI Microcontroller Evaluation Board 34.52MB RAM 16MB/64MB/4GB NAND Flash/NOR Flash/SPI NOR Flash
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Inventory 7
- PCNs 10
- MaskPart STM32F769IEVAL%
- IntroductionDate Apr 20, 2016
Parametry
- ADC N/A
- Android N/A
- Audio Interfaces Yes
- Bluetooth N/A
- CAN 1
- Compatible External Board N/A
- Daughter Cards Yes
- Display Interface MIPI-DSI
- Display Type LCD
- Ethernet 1
- GPIO N/A
- I2C 4
- IDE N/A
- JTAG Support Yes
- Linux N/A
- Main Program Memory Type Flash
- Maximum Clock Rate (MHz) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Storage Temperature (°C) N/A
- Number of LEDs 4
- PC Card Interface micro SD
- PWM N/A
- Program Memory Size 16MB/64MB/4GB
- Program Memory Type NAND Flash/NOR Flash/SPI NOR Flash
- RAM Size 34.52MB
- RF N/A
- RS232 1
- Real Time Clock N/A
- SATA N/A
- SPI 4
- Supplier Temperature Grade N/A
- Supported Device STM32F769NI
- Supported Device Technology Microcontroller
- Temperature Flag N/A
- Touchscreen On Daughter Card
- Tradename N/A
- Type Evaluation Board
- UART N/A
- USB 4
- Wi-Fi N/A
- Windows N/A
