STM32F103R4H6A
| Do pobrania | Download |
|---|---|

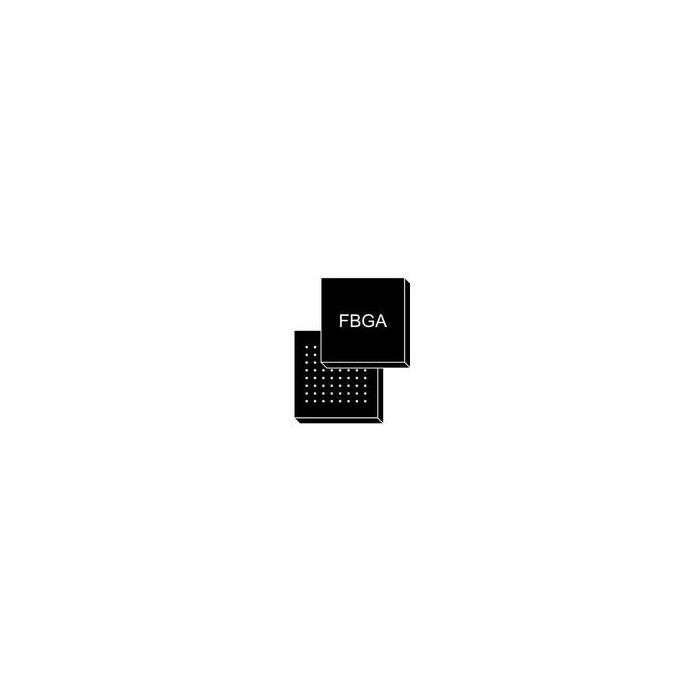

| Main description | MCU 32-bit ARM Cortex M3 RISC 16KB Flash 2.5V/3.3V 64-Pin TFBGA Tray |
MCU 32-bit ARM Cortex M3 RISC 16KB Flash 2.5V/3.3V 64-Pin TFBGA Tray
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 73
- PCNs 16
- MaskPart STM32F103R4H6A%
- IntroductionDate Sep 22, 2008
Parametry
- ADC Channels 16/16
- ADC Resolution (bit) 12/12
- Analog Comparators N/A
- Bluetooth No
- CAN 1
- CAN Type 2.0B
- Core Architecture ARM
- DAC Channels N/A
- DAC Resolution (bit) N/A
- DDR No
- DMA Channels 7
- Data Bus Width (bit) 32
- Data Cache Size N/A
- Data Memory Size N/A
- Device Core ARM Cortex M3
- Direct Memory Access Yes
- Display Driver N/A
- EEPROM N/A
- Encryption Standard N/A
- Ethernet 0
- Ethernet Interface Type N/A
- Ethernet Speed N/A
- External Bus Interface No
- Family Name STM32F
- Floating Point Unit No
- Hardware Acceleration N/A
- I2C 1
- I2S 0
- ISM Band N/A
- Input Capture Channels N/A
- Instruction Cache Size N/A
- Instruction Set Architecture RISC
- Integrated Development Environment No
- Interface Type CAN/I2C/SPI/USART/USB
- Internal/External Clock Type External
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 72
- Maximum Clock Rate (MHz) 72
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 308
- Maximum Storage Temperature (°C) 150
- Memory Management Unit No
- Memory Protection Unit No
- Minimum Storage Temperature (°C) -65
- Multiply Accumulate No
- Number of ADCs Dual
- Number of DACs N/A
- Number of Programmable I/Os 51
- Number of Timers 3
- PWM 1
- Parallel Master Port No
- Program Memory Size 16KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 6KB
- Real Time Clock Yes
- SPI 1
- Solutions N/A
- Special Features CAN Controller
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Temperature Sensor Yes
- Touch Sensing Interface No
- Trace Hardware N/A
- UART 0
- USART 2
- USB 1
- Watchdog 2
- Wi-Fi No
