STM32F091VCH6

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download

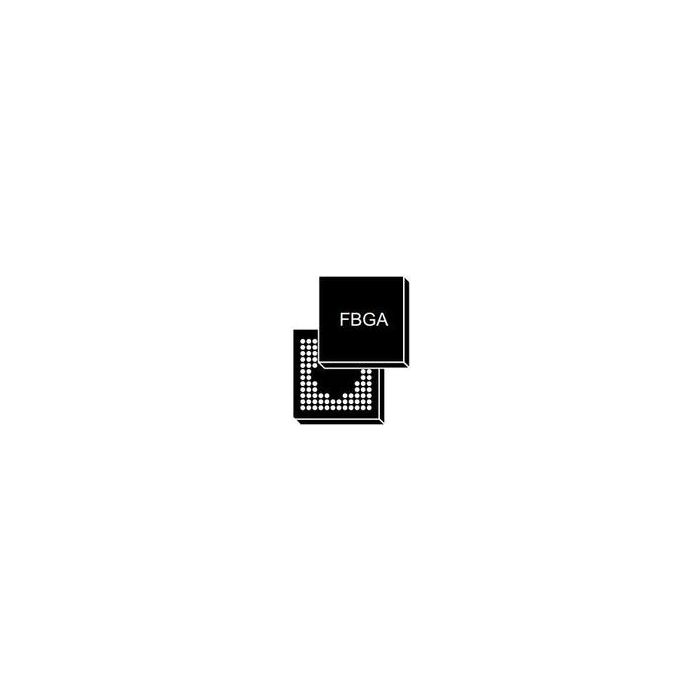

Main description	MCU 32-bit ARM Cortex M0 RISC 256KB Flash 2.5V/3.3V 100-Pin UFBGA Tray

PARAMETRY PRODUKTU

MCU 32-bit ARM Cortex M0 RISC 256KB Flash 2.5V/3.3V 100-Pin UFBGA Tray

Informacje podstawowe

ProducentSTMicroelectronics
EURoHSYes (2011/65/EU, 2015/863)
Automotive No

Informacje dodatkowe

Crosses 208
Inventory 2
PCNs 14
MaskPart STM32F091VCH6%
IntroductionDate Oct 30, 2014

Parametry

ADC Channels 19
ADC Resolution (bit) 12
Analog Comparators 2
Bluetooth No
CAN 1
CAN Type N/A
Core Architecture ARM
DAC Channels 2
DAC Resolution (bit) 12
DDR No
DMA Channels 12
Data Bus Width (bit) 32
Data Cache Size N/A
Data Memory Size N/A
Device Core ARM Cortex M0
Direct Memory Access Yes
Display Driver N/A
EEPROM N/A
Encryption Standard N/A
Ethernet 0
Ethernet Interface Type N/A
Ethernet Speed N/A
External Bus Interface No
Family Name STM32F
Floating Point Unit No
Hardware Acceleration N/A
I2C 2
I2S 2
ISM Band N/A
Input Capture Channels N/A
Instruction Cache Size N/A
Instruction Set Architecture RISC
Integrated Development Environment No
Interface Type CAN/I2C/I2S/SPI/USART
Internal/External Clock Type External
LCD Segments N/A
Maximum CPU Frequency (MHz) 48
Maximum Clock Rate (MHz) 48
Maximum Dhrystone MIPS (MIPS) N/A
Maximum Expanded Memory Size N/A
Maximum Operating Supply Voltage (V) 3.6
Maximum Operating Temperature (°C) 85
Maximum Power Dissipation (mW) 364
Maximum Storage Temperature (°C) 150
Memory Management Unit No
Memory Protection Unit No
Minimum Operating Supply Voltage (V) 2
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Multiply Accumulate No
Number of ADCs Single
Number of DACs Single
Number of Programmable I/Os 88
Number of Timers 9
Operating Supply Voltage (V) 2.5|3.3
Output Compare Channels N/A
PWM 6
Parallel Master Port No
Power On Reset Yes
Program Memory Size 256KB
Program Memory Type Flash
Programmability Yes
RAM Size 32KB
Real Time Clock Yes
SPI 2
Solutions N/A
Special Features CAN Controller
Super Scalar No
Supplier Temperature Grade N/A
Temperature Flag Opr
Temperature Sensor Yes
Timers Channels N/A
Timers Resolution (bit) N/A
Touch Sensing Interface No
Trace Hardware N/A
Tradename N/A
Typical Operating Supply Voltage (V) 2.5|3.3
UART 0
USART 8
USB 0
Watchdog 2
Wi-Fi No
