ST72F561J9TBXS
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit CISC 60KB Flash 5V Automotive 44-Pin LQFP T/R |

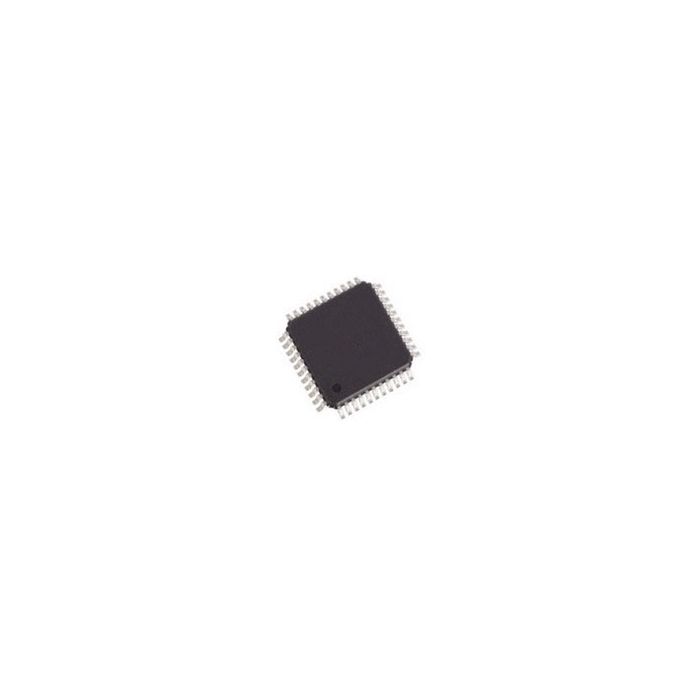

MCU 8-bit CISC 60KB Flash 5V Automotive 44-Pin LQFP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 2088
- PCNs 14
- MaskPart ST72F561J9TBXS%
- IntroductionDate May 09, 2003
Parametry
- ADC Channels 16
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 1
- Core Architecture N/A
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core N/A
- Display Driver N/A
- Ethernet 0
- Family Name ST7
- I2C 0
- I2S 0
- Instruction Set Architecture CISC
- Interface Type CAN/SCI/SPI
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 8
- Maximum Clock Rate (MHz) 8
- Maximum Expanded Memory Size 64KB
- Maximum Power Dissipation (mW) 500
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 48
- Number of Timers 2
- PWM 1
- Parallel Master Port No
- Program Memory Size 60KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 2KB
- Real Time Clock Yes
- SPI 1
- Special Features CAN Controller
- Supplier Temperature Grade N/A
- Temperature Flag Opr
- Timers Channels N/A
- Timers Resolution (bit) N/A
- UART 0
- USART 0
- USB 0
- Watchdog 1
