ST1S50PUR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ST1S50PUR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ST1S50PUR

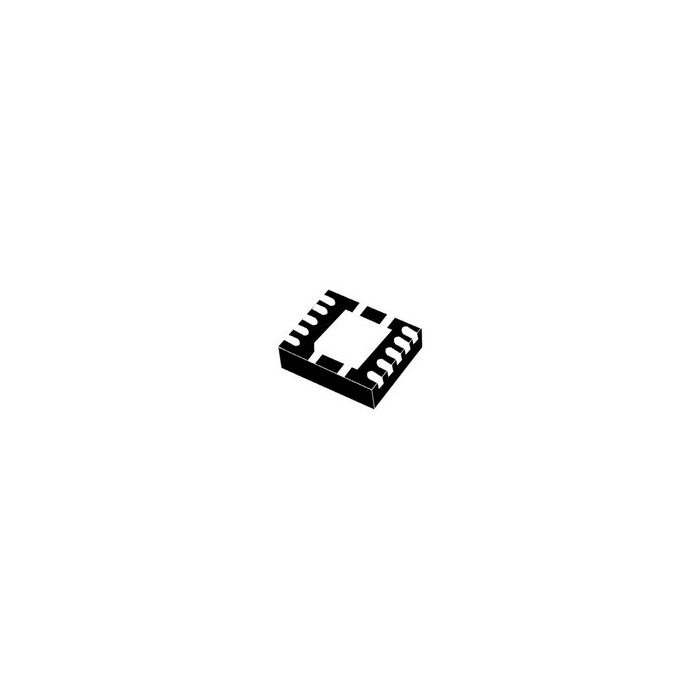

Conv DC-DC 4V to 18V Synchronous Step Down Single-Out 0.8V to 15.84V 4A 10-Pin VFDFPN EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 136
  • Inventory 5
  • PCNs 11
  • MaskPart ST1S50PUR%

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 18
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (A) 4
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 4
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.8 to 15.84
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 600
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 500
  • Typical Switch Current (A) 5.6

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4V to 18V Synchronous Step Down Single-Out 0.8V to 15.84V 4A 10-Pin VFDFPN EP T/R
