ST1S15J18R

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ST1S15J18R_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ST1S15J18R

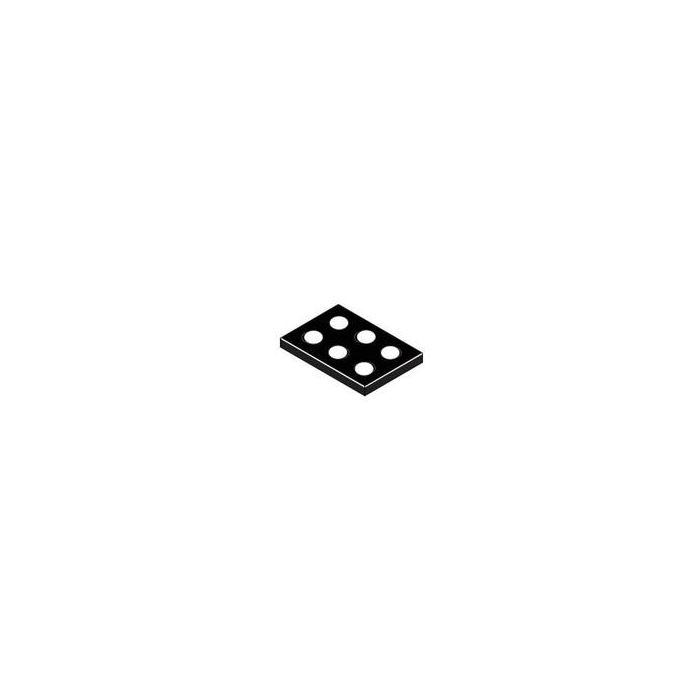

Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.82V 0.5A 6-Pin Flip-Chip T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 340
  • Inventory 5
  • PCNs 11
  • MaskPart ST1S15J18R%

Parametry

  • Efficiency (%) 85(Typ)
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation -1.5%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.5(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.3
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Fixed
  • Output Voltage (V) 1.82
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 5400 to 6600
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 45

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.3V to 5.5V Synchronous Step Down Single-Out 1.82V 0.5A 6-Pin Flip-Chip T/R
