ST1S09PUR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ST1S09PUR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ST1S09PUR

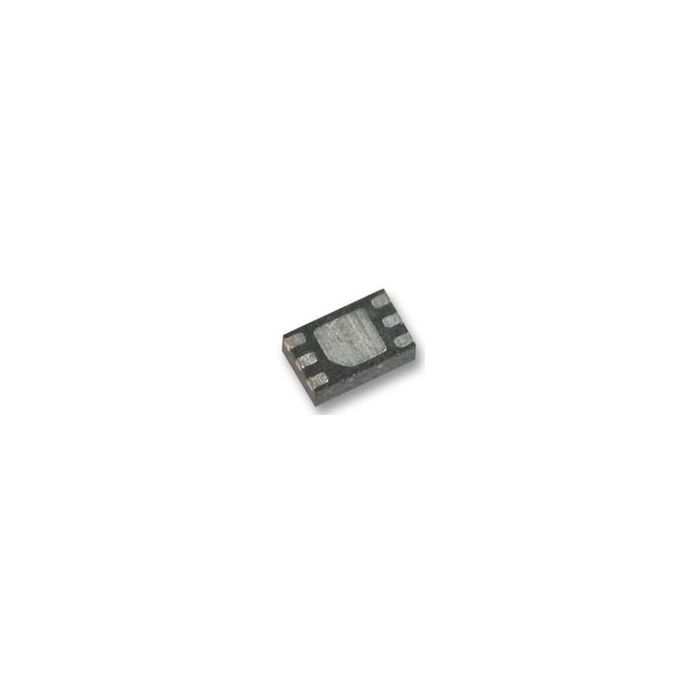

Conv DC-DC 4.5V to 5.5V Synchronous Step Down Single-Out 2A 6-Pin DFN T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 435
  • Inventory 4
  • PCNs 21
  • MaskPart ST1S09PU%
  • IntroductionDate Jun 18, 2007

Parametry

  • Efficiency (%) 90(Min)
  • Isolation N/A
  • Line Regulation 0.16%(Typ)
  • Load Regulation 0.6%
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -30
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4.5 to 5.5
  • Output Type N/A
  • Output Voltage (V) N/A
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1800
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 1500

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 5.5V Synchronous Step Down Single-Out 2A 6-Pin DFN T/R
