ST1S06PU12R
| Do pobrania | Download |
|---|---|

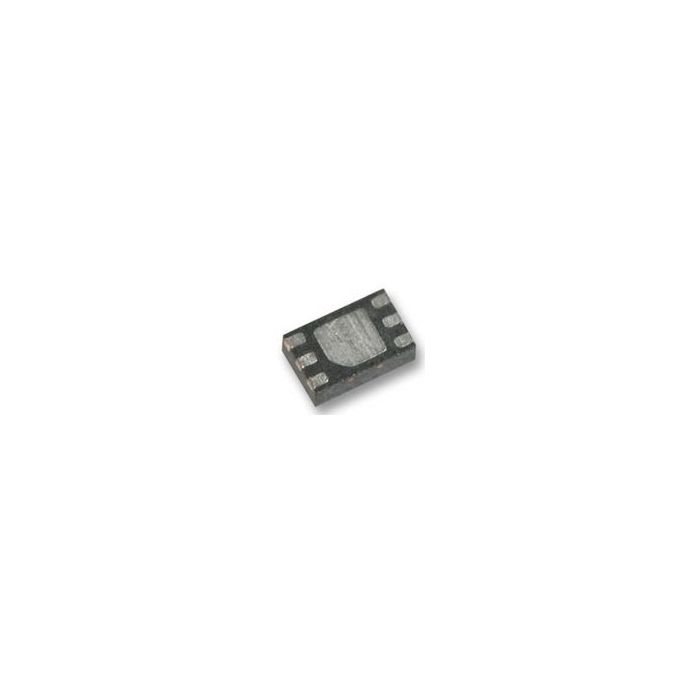

| Main description | Conv DC-DC 2.7V to 6V Synchronous Step Down Single-Out 0.5V to 5V 1.5A 6-Pin DFN T/R |
Conv DC-DC 2.7V to 6V Synchronous Step Down Single-Out 0.5V to 5V 1.5A 6-Pin DFN T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 52
- Inventory 3
- PCNs 16
- MaskPart ST1S06PU12%
- IntroductionDate Mar 08, 2005
Parametry
- Efficiency (%) 90(Typ)
- Line Regulation 0.3%
- Load Regulation 0.3%
- Maximum Input Voltage (V) 6
- Maximum Output Current (A) 1.5(Min)
- Maximum Output Power (W) N/A
- Minimum Input Voltage (V) 2.7
- Minimum Isolation Voltage N/A
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 0.5 to 5
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 1500(Typ)
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Quiescent Current (uA) 1500(Max)
