ST1S03PUR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ST1S03PUR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ST1S03PUR

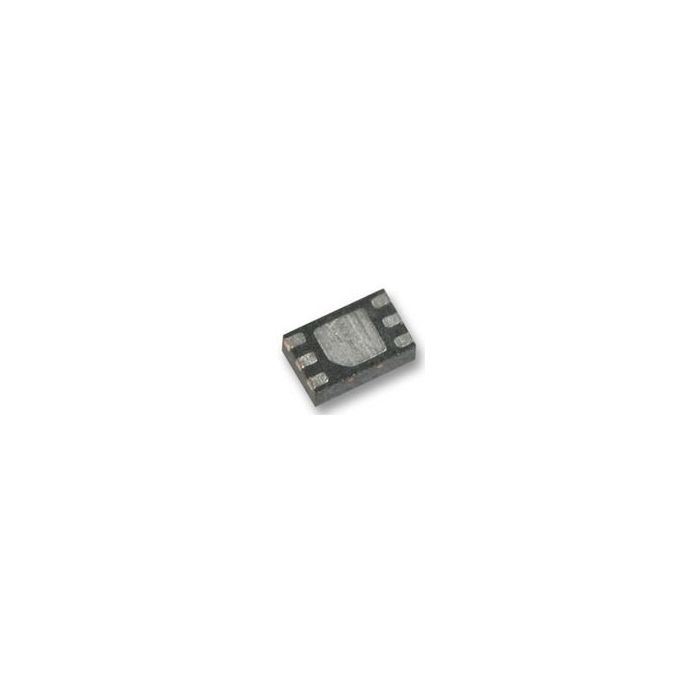

Conv DC-DC 3V to 16V Step Down Single-Out 1.5A 6-Pin DFN T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 19
  • Inventory 6
  • PCNs 22
  • MaskPart ST1S03PU%
  • IntroductionDate Nov 11, 2004

Parametry

  • Efficiency (%) 70(Min)
  • Isolation N/A
  • Line Regulation 0.06%Vo/Vi(Typ)
  • Load Regulation N/A
  • Maximum Input Voltage (V) 16
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (A) 1.5(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 3
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) N/A
  • Minimum Storage Temperature (°C) -20
  • Number of Outputs 1
  • Operating Supply Voltage (V) 3 to 16
  • Output Type N/A
  • Output Voltage (V) N/A
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1800
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 2500(Max)

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 3V to 16V Step Down Single-Out 1.5A 6-Pin DFN T/R
