ST1L05BPUR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ST1L05BPUR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ST1L05BPUR

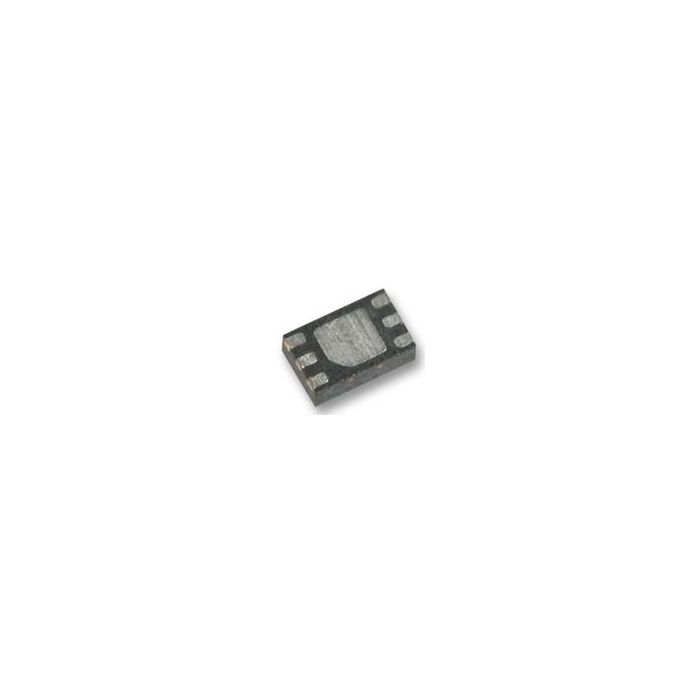

LDO Regulator Pos 1.22V to 5.5V 1.3A 6-Pin DFN T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 396
  • Inventory 4
  • PCNs 17
  • MaskPart ST1L05BPU%
  • IntroductionDate Feb 29, 2008

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 55°C/W
  • Junction to Case 10°C/W
  • Line Regulation 15mV
  • Load Regulation 30mV
  • Maximum Dropout Voltage @ Current (V) 0.4@800mA|0.45@1A|0.5@1.3A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1.3(Min)
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.5
  • Minimum Input Voltage (V) 3
  • Minimum Operating Temperature (°C) 0
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.22 to 5.5
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.2@800mA|0.25@1A|0.3@1.3A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.35

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.22V to 5.5V 1.3A 6-Pin DFN T/R
