SN75LVCP600SDSKR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN75LVCP600SDSKR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN75LVCP600SDSKR

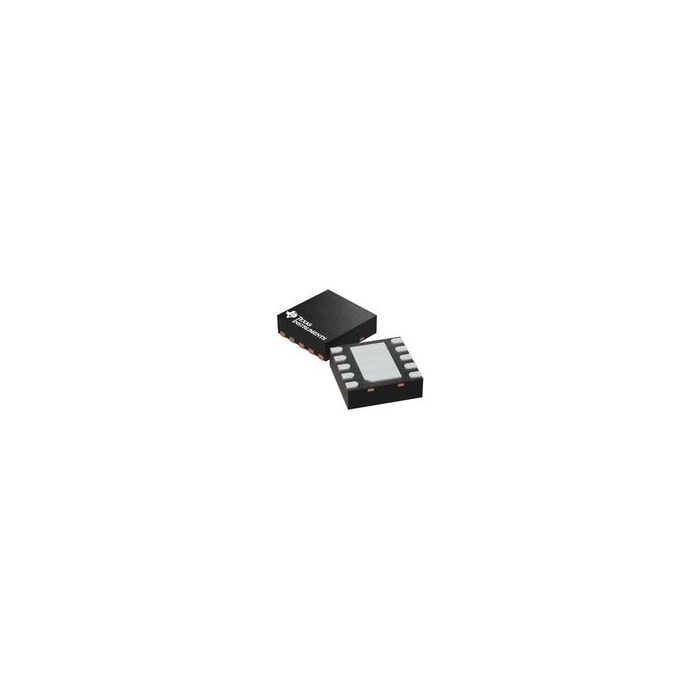

LVDS Driver 3000Mbps 10-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 4
  • PCNs 40
  • MaskPart SN75LVCP600SDSKR%
  • IntroductionDate Apr 01, 2011

Parametry

  • Differential Input High Threshold Voltage (V) N/A
  • Differential Input Low Threshold Voltage (V) N/A
  • Function Driver
  • Input Signal Type CML|LVCMOS
  • Maximum Differential Output Voltage (V) N/A
  • Maximum Input Current (uA) 30
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Frequency (MHz) N/A
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers 1
  • Number of Elements per Chip N/A
  • Number of Receivers N/A
  • Output Signal Type CML
  • Process Technology N/A
  • Supplier Temperature Grade Industrial
  • Transmission Data Rate (Mbps) 3000
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description LVDS Driver 3000Mbps 10-Pin WSON EP T/R
