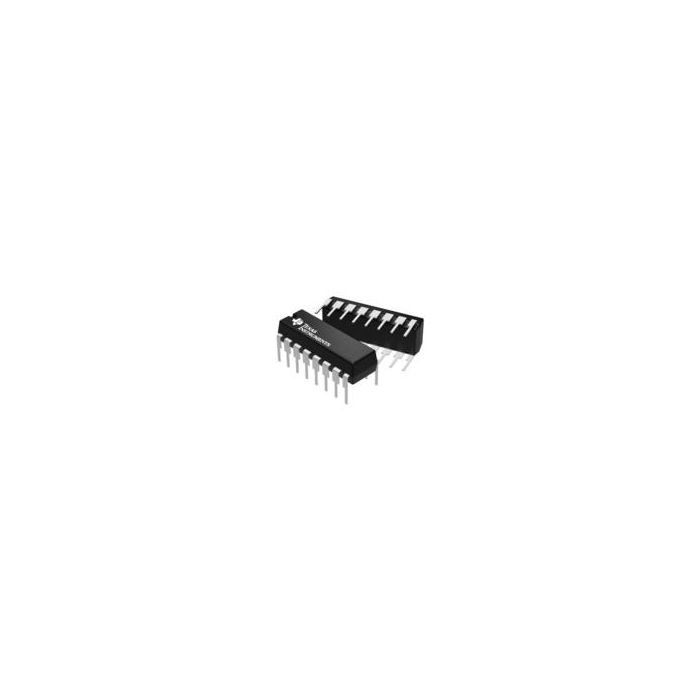

SN75469N

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN75469N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN75469N

Trans Darlington NPN 100V 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 11
  • Inventory 8
  • PCNs 48
  • MaskPart SN75469N%
  • IntroductionDate Jan 01, 2002
  • AliasParts SN75469NE4

Parametry

  • Configuration Array 7
  • Maximum Base Emitter Saturation Voltage (V) N/A
  • Maximum Collector Base Voltage (V) N/A
  • Maximum Collector Cut-Off Current (uA) N/A
  • Maximum Collector-Emitter Saturation Voltage (V) 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA
  • Maximum Collector-Emitter Voltage (V) 100
  • Maximum Continuous DC Collector Current (A) N/A
  • Maximum Emitter Base Voltage (V) N/A
  • Maximum Input Current (mA) 1.45@12V
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum DC Current Gain N/A
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 7
  • Supplier Temperature Grade N/A
  • Type NPN
  • Typical Current Gain Bandwidth (MHz) N/A

Więcej informacji

Do pobrania Download
Main description Trans Darlington NPN 100V 16-Pin PDIP Tube
