SN75175NG
| Do pobrania | Download |
|---|---|
| Main description | Quad Receiver RS-422/RS-423/RS-485 16-Pin PDIP |

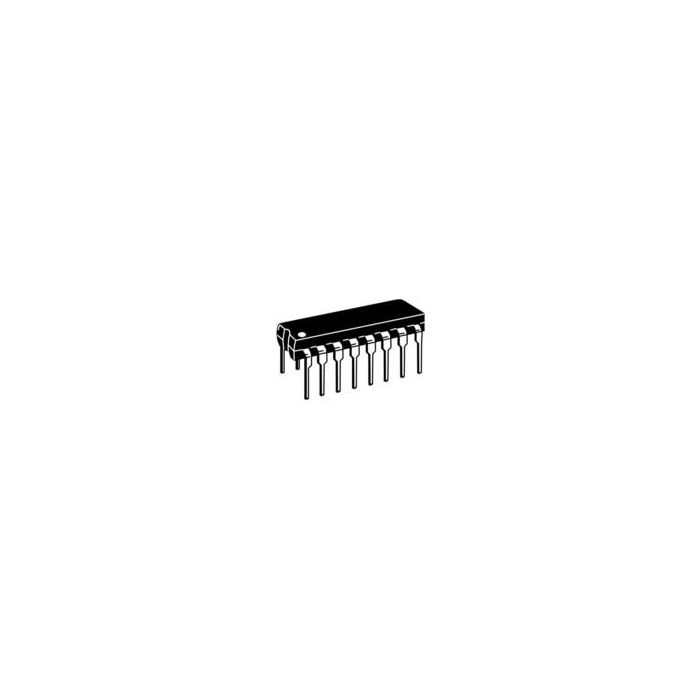

Quad Receiver RS-422/RS-423/RS-485 16-Pin PDIP
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 21
- PCNs 18
- MaskPart SN75175NG%
- IntroductionDate Sep 04, 1996
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN75175NG&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Data Rate 10Mbps
- Data Transmission Topology Multidrop|Multipoint
- Driving Mode 3-State
- Function Line Receiver
- Input Logic Level N/A
- Interface Standards EIA/TIA-422-B|EIA/TIA-423-B|EIA/TIA-485|RS-423-B|RS-485|V.10|V.11|X.26|X.27
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.25
- Maximum Supply Current (mA) 70
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.75
- Number of Drivers per Line N/R
- Number of Receiver Enables 2
- Number of Receivers 4
- Number of Receivers per Line 10@RS-422|10@RS-423|32@RS-485
- Number of Transceivers N/R
- Number of Transmitter Enables N/R
- Number of Transmitters N/R
- Output Logic Level N/A
- Power Down Mode N/A
- Power Supply Type Single
- Receiver Communication Type RS-422|RS-423|RS-485
- Receiver Signal Type Differential
- Supplier Temperature Grade N/A
- Transmitter Communication Type N/A
- Transmitter Signal Type N/R
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 5
