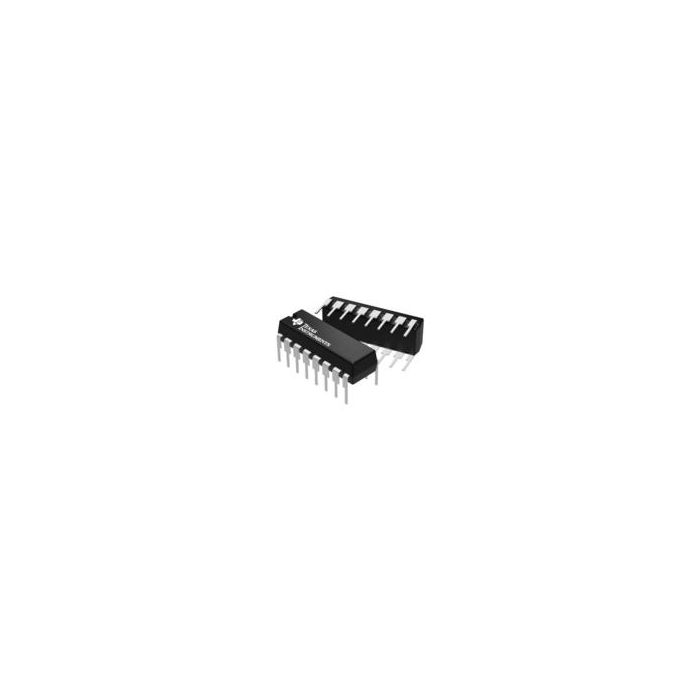

SN74S124NE4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74S124NE4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74S124NE4

Oscillator VCO 25MHz to 85MHz 15pF Squarewave/TTL 50% 5V 16-Pin PDIP Thru-Hole Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 1
  • PCNs 40
  • MaskPart SN74S124NE4%
  • IntroductionDate Jan 01, 2002

Parametry

  • Center Frequency (MHz) N/A
  • Frequency Aging N/A
  • Frequency Range (MHz) 25 to 85
  • Frequency Stability N/A
  • Frequency Tolerance N/A
  • Input Level N/A
  • Load Capacitance (pF) 15
  • Lower Frequency (MHz) 25
  • Lower Frequency Range (MHz) 25 to 33.333
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Supply Current (mA) N/A
  • Maximum Symmetry (%) 50
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Output Frequency (MHz) 25 to 85
  • Output Level Squarewave|TTL
  • Programmability No
  • Supplier Temperature Grade Commercial
  • Tuning Voltage (V) 1 to 5
  • Type Voltage Controlled Oscillator (VCO)
  • Typical Operating Supply Voltage (V) 5
  • Typical Phase Noise (dBc/Hz) N/A
  • Upper Frequency (MHz) 85
  • Upper Frequency Range (MHz) 56.448 to 6500

Więcej informacji

Do pobrania Download
Main description Oscillator VCO 25MHz to 85MHz 15pF Squarewave/TTL 50% 5V 16-Pin PDIP Thru-Hole Tube
