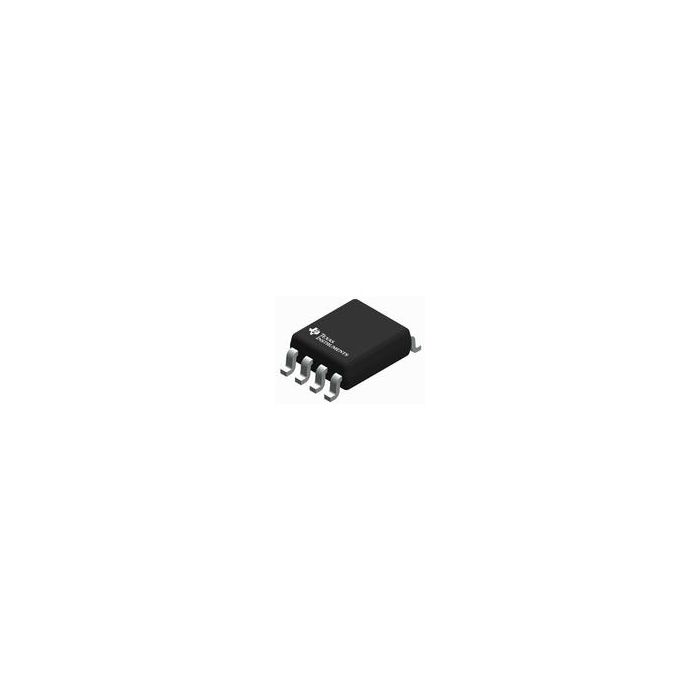

SN74LVC2T45DCUR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LVC2T45DCUR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LVC2T45DCUR

Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 13
  • Inventory 8
  • PCNs 62
  • MaskPart SN74LVC2T45DCU%
  • IntroductionDate Jul 01, 2003
  • AliasParts SN74LVC2T45DCURE4SN74LVC2T45DCURG4

Parametry

  • Absolute Propagation Delay Time (ns) 45.2
  • Channel Type Bidirectional
  • Logic Family LVC
  • Logic Function Voltage Level Translator
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 17.7@1.8V
  • Maximum Quiescent Current (mA) 0.003
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Channels 2
  • Output Type 3-State
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Translation N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R
