SN74LVC2G17DCKR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LVC2G17DCKR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LVC2G17DCKR

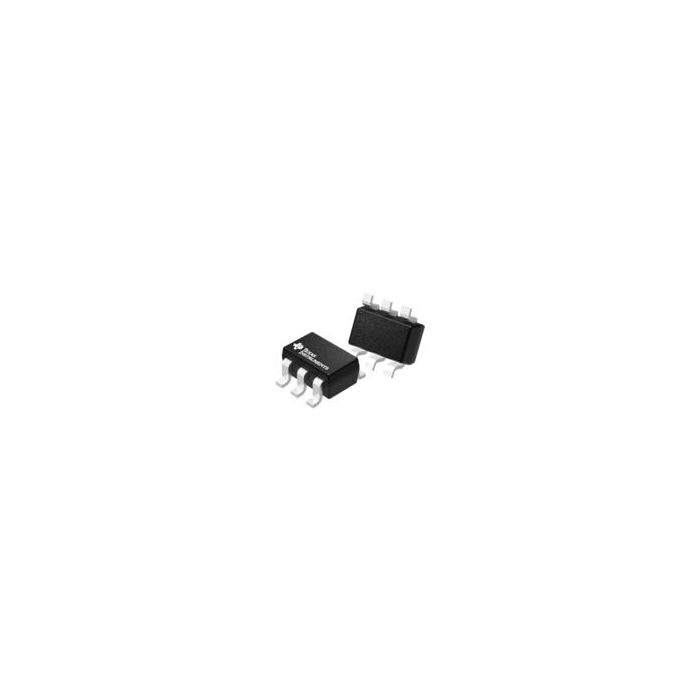

Schmitt Trigger Buffer 2-CH Non-Inverting Push-Pull CMOS 6-Pin SC-70 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 9
  • PCNs 110
  • MaskPart SN74LVC2G17DCK%
  • IntroductionDate Feb 01, 2010
  • AliasParts SN74LVC2G17DCKRE4SN74LVC2G17DCKRG4

Parametry

  • Absolute Propagation Delay Time (ns) 9.3
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family LVC
  • Logic Function Schmitt Trigger Buffer
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 5.4@3.3V|4.3@5V
  • Maximum Quiescent Current (uA) 10
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Channels per Chip 2
  • Number of Elements per Chip 2
  • Number of Input Enables per Chip 0
  • Number of Inputs per Chip 2
  • Number of Output Enables per Chip 0
  • Number of Outputs per Chip 2
  • Output Type Push-Pull
  • Polarity Non-Inverting
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) 5
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Schmitt Trigger Buffer 2-CH Non-Inverting Push-Pull CMOS 6-Pin SC-70 T/R
