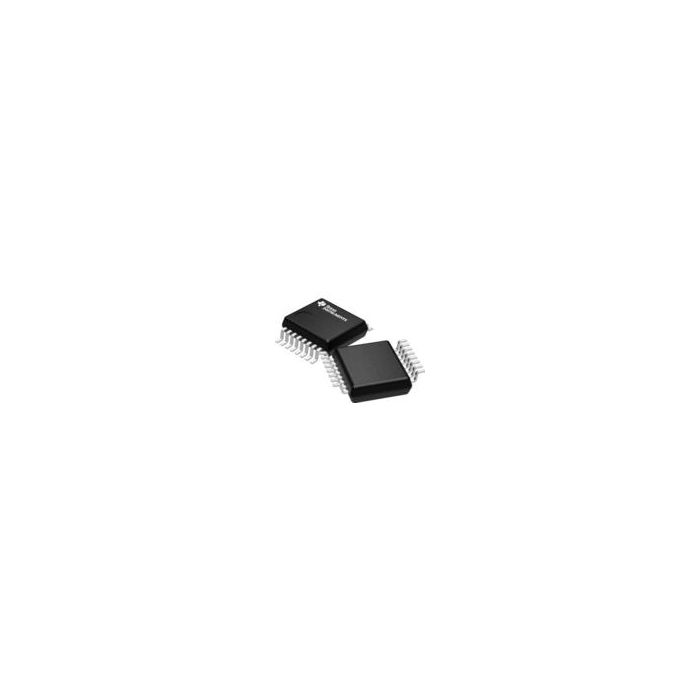

SN74LVC257ADBRG4
ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- SN74LVC257ADBRG4_TEXAS_INSTRUMENTS
0,00 zł
Opis / SN74LVC257ADBRG4
Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 67
- Inventory 5*
- PCNs 39
- MaskPart SN74LVC257ADB%G4
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 15.6
- Configuration 4 x 2:1
- Input Signal Type Single-Ended
- Logic Family LVC
- Logic Function Multiplexer
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -24
- Maximum Low Level Output Current (mA) 24
- Maximum On Resistance (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 5.4@2.7V|4.6@3.3V
- Maximum Quiescent Current (uA) 10
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Number of Input Enables per Element 0
- Number of Inputs per Chip 8
- Number of Output Enables per Element 1
- Number of Outputs per Chip 4
- Number of Selection Inputs per Element 1
- Output Signal Type Single-Ended
- Output Type 3-State
- Parity Invert Input No
- Polarity Non-Inverting
- Power Supply Type Single
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Tolerant I/Os (V) 5
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SSOP T/R |
