SN74LVC1G99DCUR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LVC1G99DCUR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LVC1G99DCUR

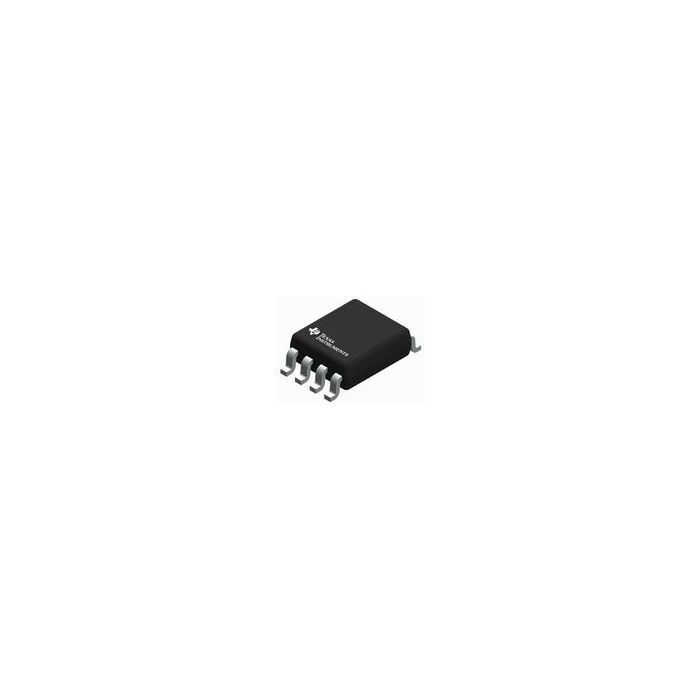

Multi Function Gate 1-Element 2-IN CMOS 8-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 12
  • Inventory 7
  • PCNs 47
  • MaskPart SN74LVC1G99DCU%
  • IntroductionDate Apr 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 30.8
  • Input Type Schmitt Trigger
  • Logic Family LVC
  • Logic Function Multi Function
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 8.6@3.3V|5.7@5V
  • Maximum Quiescent Current (uA) 10
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 1
  • Number of Output Enables per Element 1
  • Number of Selection Inputs per Element 1
  • Output Type 3-State
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Multi Function Gate 1-Element 2-IN CMOS 8-Pin VSSOP T/R
