SN74LVC1G123DCUR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LVC1G123DCUR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LVC1G123DCUR

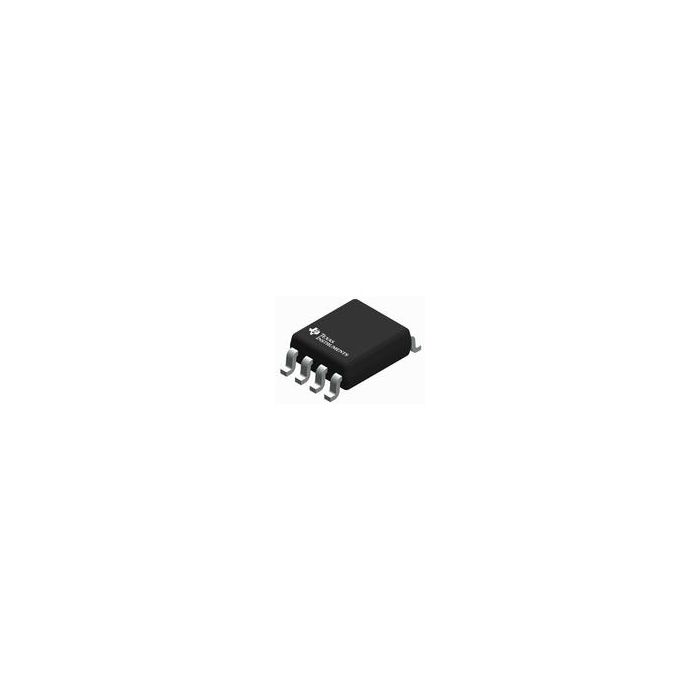

Monostable Multivibrator Single-Element -40°C 125°C 8-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 11
  • Inventory 8
  • PCNs 51
  • MaskPart SN74LVC1G123DCU%
  • IntroductionDate Apr 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 59
  • Logic Family LVC
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 18.6(Typ)@1.8V
  • Maximum Quiescent Current (mA) 0.02
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Single-Element -40°C 125°C 8-Pin VSSOP T/R
