SN74LVC14APWR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LVC14APWR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LVC14APWR

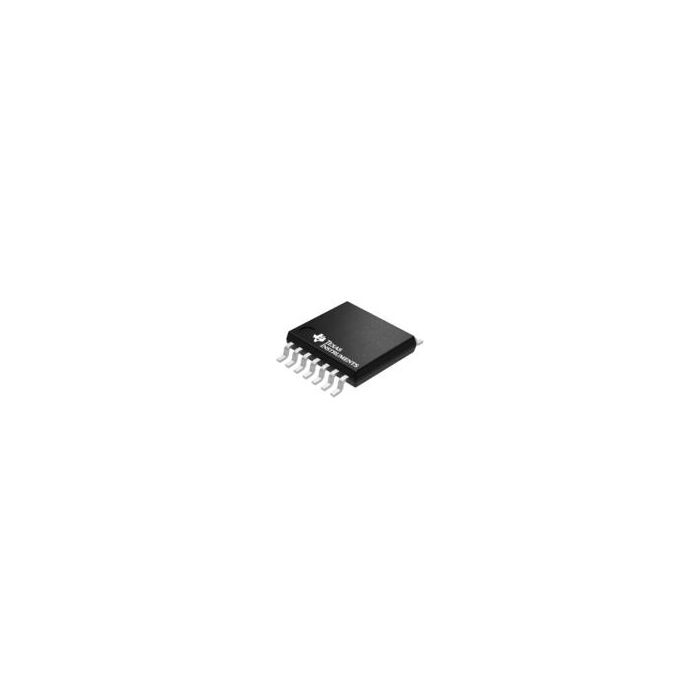

Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 65
  • Inventory 9
  • PCNs 91
  • MaskPart SN74LVC14APW%
  • IntroductionDate Aug 01, 2003
  • AliasParts SN74LVC14APWRE4SN74LVC14APWRG4

Parametry

  • Absolute Propagation Delay Time (ns) 13
  • Input Type Schmitt Trigger
  • Logic Family LVC
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -24
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 7.3@2.7V|6.2@3.3V
  • Maximum Quiescent Current (uA) 1
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 6
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP T/R
