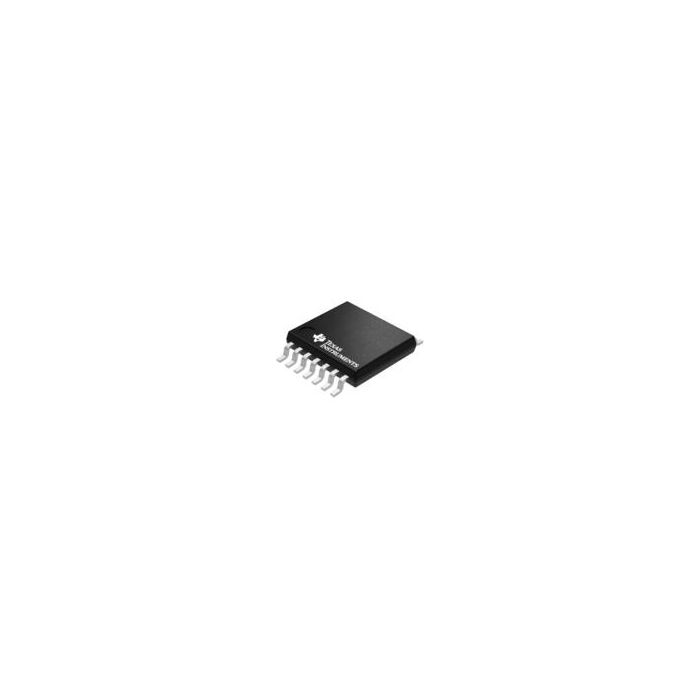

SN74LVC08APW
Do pobrania | Download |
---|---|
Main description | AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube |
AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 70
- Inventory 9
- PCNs 48
- MaskPart SN74LVC08APW%
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 11.3
- Input Type N/A
- Logic Family LVC
- Logic Function AND
- Maximum High Level Output Current (mA) -24
- Maximum Low Level Output Current (mA) 24
- Maximum Propagation Delay Time @ Maximum CL (ns) 4.6@2.7V|3.9@3.3V
- Maximum Quiescent Current (uA) 1
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Element Inputs 2-IN
- Number of Element Outputs 1
- Number of Elements per Chip 4
- Number of Output Enables per Element 0
- Number of Selection Inputs per Element 0
- Output Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Commercial
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
