SN74LV4051AN

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LV4051AN_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LV4051AN

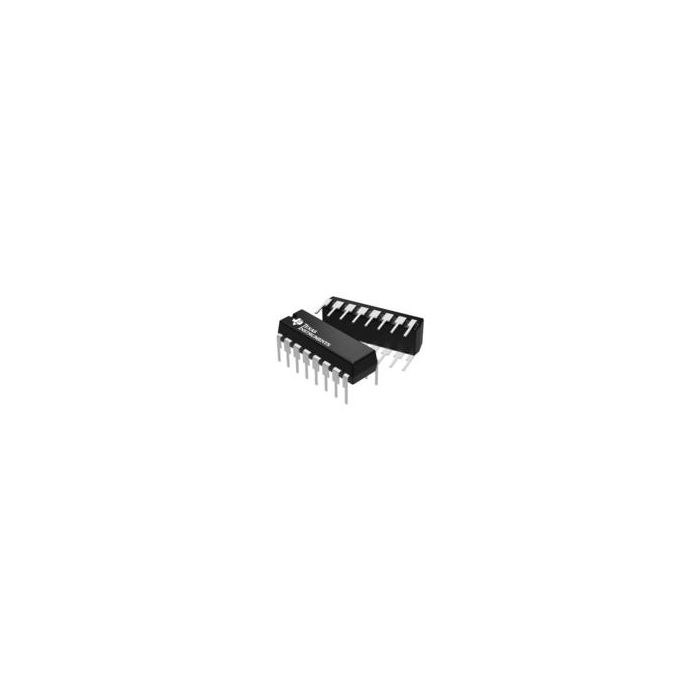

Analog Multiplexer Single 8:1 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 229
  • Inventory 8
  • PCNs 46
  • MaskPart SN74LV4051AN%
  • IntroductionDate Jan 01, 2002

Parametry

  • Chip Enable Signals Yes
  • Configuration Single 8:1
  • Function General
  • Input Signal Type Single
  • Latch-Up Proof Yes
  • Logic Family LV
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 20(Typ)@2.3V|25(Typ)@3V|35(Typ)@4.5V
  • Maximum High Level Output Current (mA) N/A
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) 180@2.3V
  • Maximum On Resistance Range (Ohm) 150 to 250
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Bus to Bus (ns) 6@5V|9@3.3V|12@2.5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.02@5.5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 28@2.5V
  • Maximum Turn-On Time (ns) 28@2.5V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2
  • Minimum Storage Temperature (°C) -65
  • Multiplexer Architecture 8:1
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 1
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) 50
  • Special Features N/A
  • Supplier Temperature Grade N/A
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Single 8:1 16-Pin PDIP Tube
