SN74LS95BNG
| Do pobrania | Download |
|---|---|
| Main description | IC SHIFT REGISTER SINGLE 4-Bit LEFT/RIGHT 14PDIP |

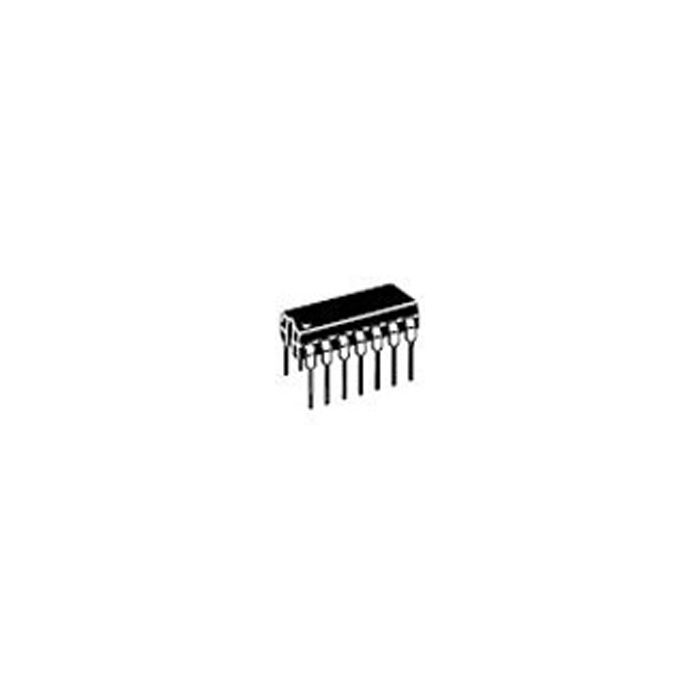

IC SHIFT REGISTER SINGLE 4-Bit LEFT/RIGHT 14PDIP
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2002/95/EC)
- Automotive No
Informacje dodatkowe
- PCNs 17
- MaskPart SN74LS95BNG%
- IntroductionDate Oct 18, 1996
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS95BNG&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Direction Type Bi-Directional
- Logic Family LS
- Logic Function Shift Register
- Maximum Propagation Delay Time @ Maximum CL (ns) 32
- Number of Count Input Enables 0
- Number of Element Inputs 5
- Number of Element Outputs 4
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 4
- Operation Mode Serial/Parallel to Parallel
- Parallel Enable Input No
- Preset Type N/A
- Process Technology Bipolar
- Reset Type N/A
- Terminal Count Output No
- Triggering Type Negative-Edge
