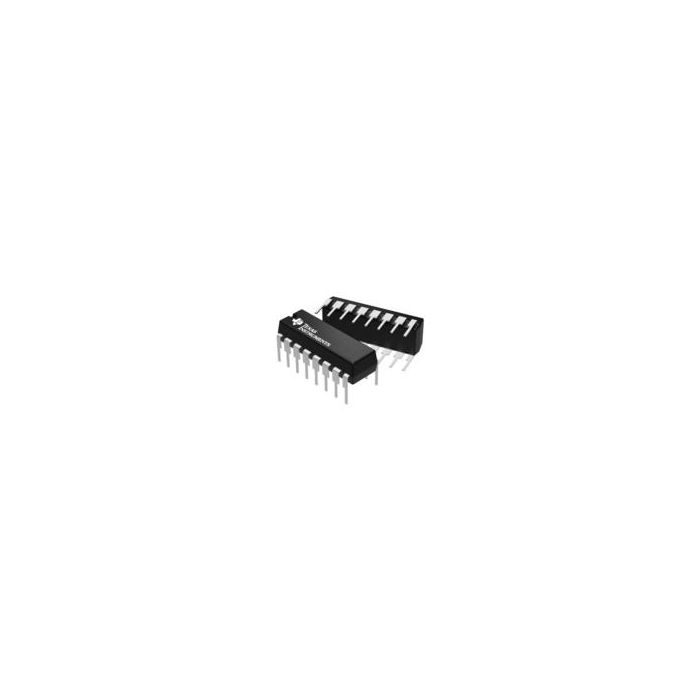

SN74LS670N
Do pobrania | Download |
---|---|
Main description | Register File Single-Element 4-CH Bipolar 16-Pin PDIP Tube |
Register File Single-Element 4-CH Bipolar 16-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 18
- Inventory 6
- PCNs 48
- MaskPart SN74LS670N%
- IntroductionDate Jan 01, 2002
Parametry
- Absolute Propagation Delay Time (ns) 50
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family LS
- Logic Function Register File
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -2.6
- Maximum Low Level Output Current (mA) 8
- Maximum Propagation Delay Time @ Maximum CL (ns) 45@5V
- Maximum Quiescent Current (mA) N/A
- Number of Channels per Chip 4
- Number of Element Inputs 4
- Number of Element Outputs 4
- Number of Elements per Chip 1
- Number of Input Enables per Element 1
- Number of Output Enables per Element 1
- Number of Selection Inputs per Element 4
- Output Signal Type Single-Ended
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology Bipolar
- Propagation Delay Test Condition (pF) 15
- Reset Type N/A
- Supplier Temperature Grade Commercial
- Tolerant I/Os (V) N/A
- Triggering Type N/A
