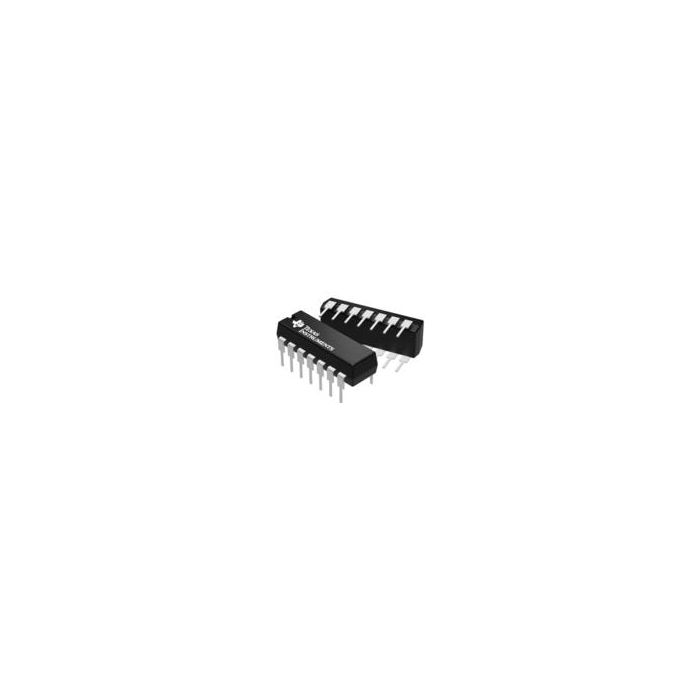

SN74LS293N
Do pobrania | Download |
---|---|
Main description | Counter/Divider Single 4-Bit Binary UP 14-Pin PDIP Tube |
Counter/Divider Single 4-Bit Binary UP 14-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 16
- Inventory 6
- PCNs 47
- MaskPart SN74LS293N%
- IntroductionDate Jan 01, 2002
Parametry
- Absolute Propagation Delay Time (ns) 70
- Direction Type Uni-Directional
- Logic Family LS
- Logic Function Counter/Divider
- Maximum Propagation Delay Time @ Maximum CL (ns) 70@5V
- Maximum Quiescent Current (mA) N/A
- Number of Count Input Enables 0
- Number of Element Inputs 2
- Number of Element Outputs 4
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 4
- Operation Mode UP Counter
- Output Type N/A
- Parallel Enable Input No
- Preset Type N/A
- Process Technology Bipolar
- Propagation Delay Test Condition (pF) 15
- Reset Type Asynchronous
- Supplier Temperature Grade Commercial
- Terminal Count Output No
- Tolerant I/Os (V) N/A
- Triggering Type Negative-Edge
- Type Binary
