SN74LS283NG

Więcej informacji
Do pobrania Download

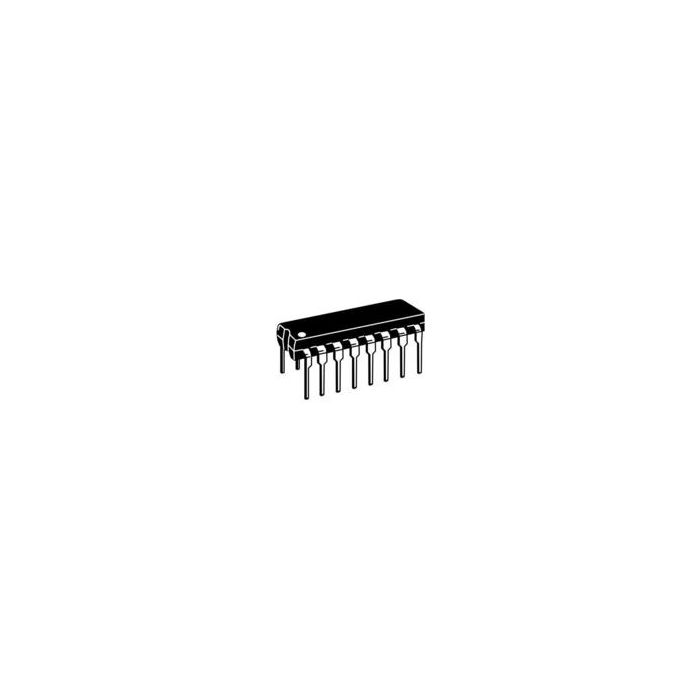

Main description Binary Full Adder Single-Element 4-Bit 16-Pin PDIP Box
Binary Full Adder Single-Element 4-Bit 16-Pin PDIP Box

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 18
  • PCNs 17
  • MaskPart SN74LS283NG%
  • IntroductionDate Dec 28, 1999
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS283NG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 24
  • Logic Family LS
  • Logic Function Binary Full Adder
  • Maximum High Level Output Current (mA) -0.4
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 24@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Bits 4
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5
