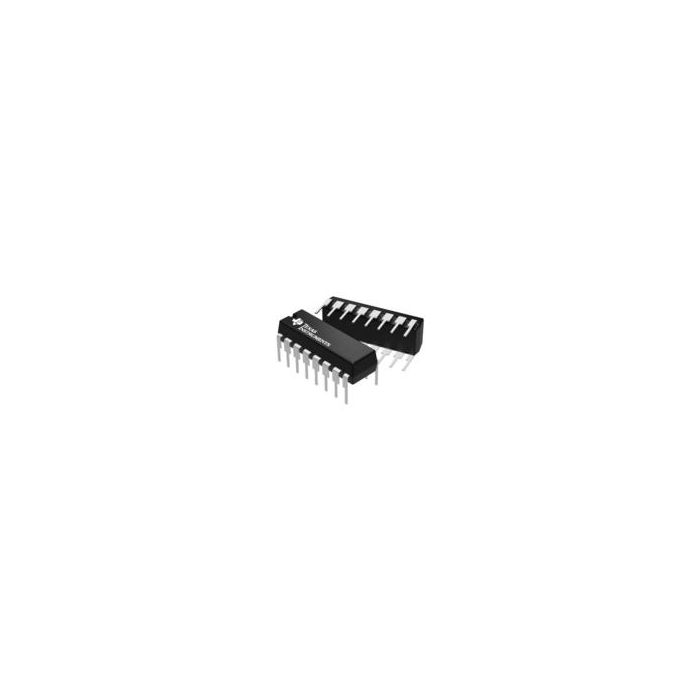

SN74LS221N3

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS221N3_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS221N3

Monostable Multivibrator Dual-Element 0°C 70°C 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 24
  • Inventory 12*
  • PCNs 39
  • MaskPart SN74LS221N3%
  • IntroductionDate Dec 01, 1983

Parametry

  • Absolute Propagation Delay Time (ns) 80
  • Logic Family LS
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -0.4
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 80@5V
  • Maximum Quiescent Current (mA) 4.7(Typ)
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Elements per Chip 2
  • Process Technology Bipolar
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Dual-Element 0°C 70°C 16-Pin PDIP Tube
