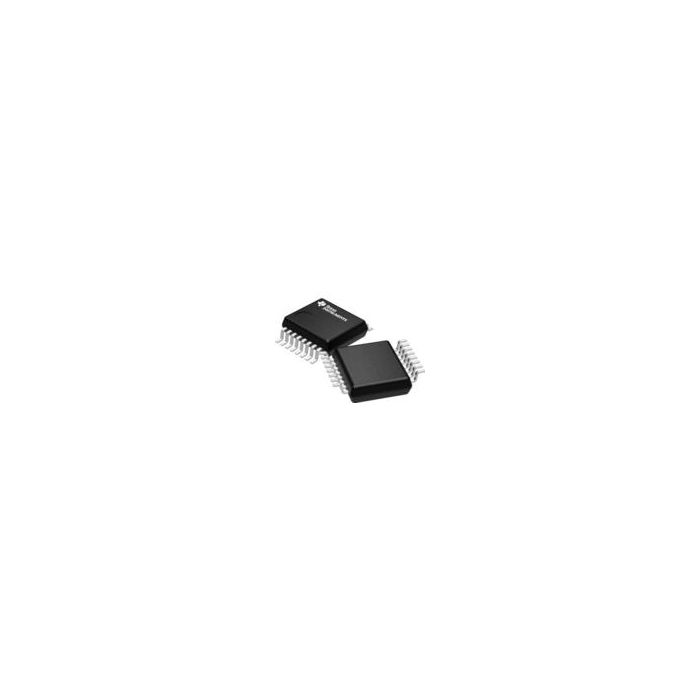

SN74LS221DBR
Do pobrania | Download |
---|---|
Main description | Monostable Multivibrator Dual-Element 0°C 70°C 16-Pin SSOP T/R |
Monostable Multivibrator Dual-Element 0°C 70°C 16-Pin SSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 22
- Inventory 4
- PCNs 43
- MaskPart SN74LS221DB%
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 80
- Logic Family LS
- Logic Function Monostable Multivibrator
- Maximum High Level Output Current (mA) -0.4
- Maximum Low Level Output Current (mA) 8
- Maximum Propagation Delay Time @ Maximum CL (ns) 80@5V
- Maximum Quiescent Current (mA) 4.7(Typ)
- Number of Elements per Chip 2
- Process Technology Bipolar
- Supplier Temperature Grade Commercial
