SN74LS196N

ProducentTexas InstrumentsEURoHSUnknown (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS196N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS196N

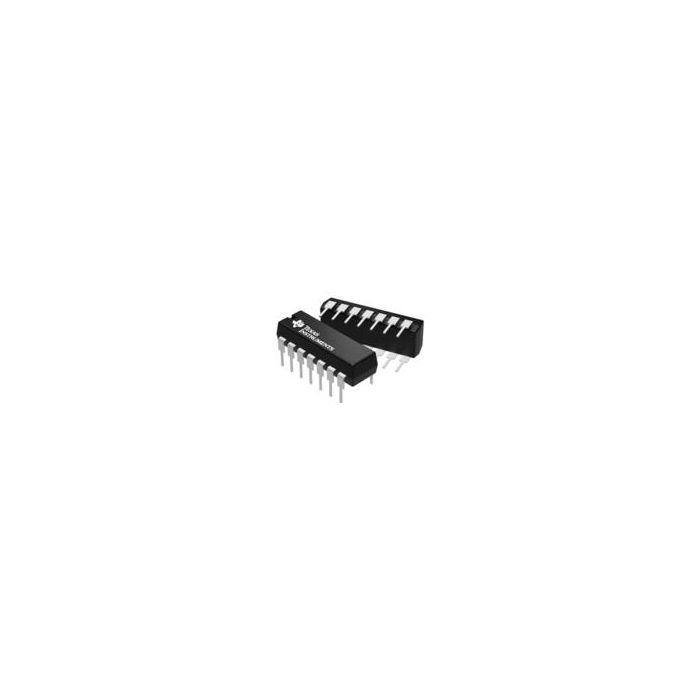

Counter/Divider Single 4-Bit Decade UP 14-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • PCNs 39
  • MaskPart SN74LS196N%
  • IntroductionDate Oct 01, 1976

Parametry

  • Absolute Propagation Delay Time (ns) 62
  • Direction Type Uni-Directional
  • Logic Family LS
  • Logic Function Counter/Divider
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 62@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 0
  • Number of Element Inputs 4
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 4
  • Operation Mode UP Counter
  • Output Type N/A
  • Parallel Enable Input Yes
  • Preset Type N/A
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type N/A
  • Supplier Temperature Grade Commercial
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Negative-Edge
  • Type Decade
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Counter/Divider Single 4-Bit Decade UP 14-Pin PDIP Tube
