SN74LS195AN
Do pobrania | Download |
---|---|

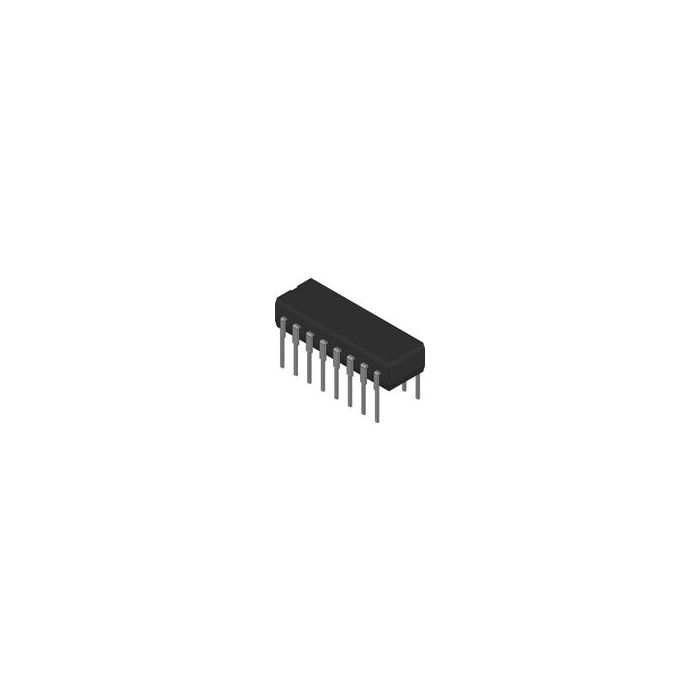

Main description | Shift Register Single 4-Bit Serial/Parallel to Serial/Parallel 16-Pin PDIP |
Shift Register Single 4-Bit Serial/Parallel to Serial/Parallel 16-Pin PDIP
Informacje podstawowe
- ProducentRochester Electronics
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 5
- MaskPart SN74LS195AN%
Parametry
- Absolute Propagation Delay Time (ns) 30
- Direction Type Uni-Directional
- Logic Family LS
- Logic Function Shift Register
- Maximum Propagation Delay Time @ Maximum CL (ns) 26@5V
- Maximum Quiescent Current (mA) N/A
- Number of Count Input Enables 0
- Number of Element Inputs 6
- Number of Element Outputs 4
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 4
- Operation Mode Serial/Parallel to Serial/Parallel
- Output Type N/A
- Parallel Enable Input Yes
- Preset Type N/A
- Process Technology Bipolar
- Propagation Delay Test Condition (pF) 15
- Reset Type Asynchronous
- Supplier Temperature Grade Commercial
- Terminal Count Output No
- Tolerant I/Os (V) N/A
- Triggering Type Positive-Edge
- Type N/R
