SN74LS194ANG

ProducentON SemiconductorEURoHSYes (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS194ANG_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS194ANG

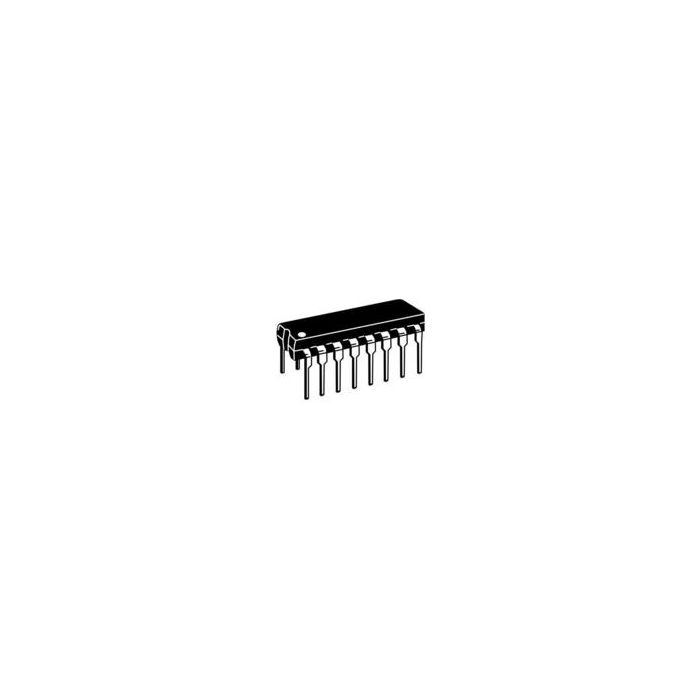

Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin PDIP Box

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 8
  • PCNs 18
  • MaskPart SN74LS194ANG%
  • IntroductionDate Dec 28, 1999
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS194ANG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 30
  • Direction Type Bi-Directional
  • Logic Family LS
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 26@15V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 0
  • Number of Element Inputs 6
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 2
  • Number of Stages 4
  • Operation Mode Serial/Parallel to Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type Asynchronous
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin PDIP Box
