SN74LS194AN

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS194AN_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS194AN

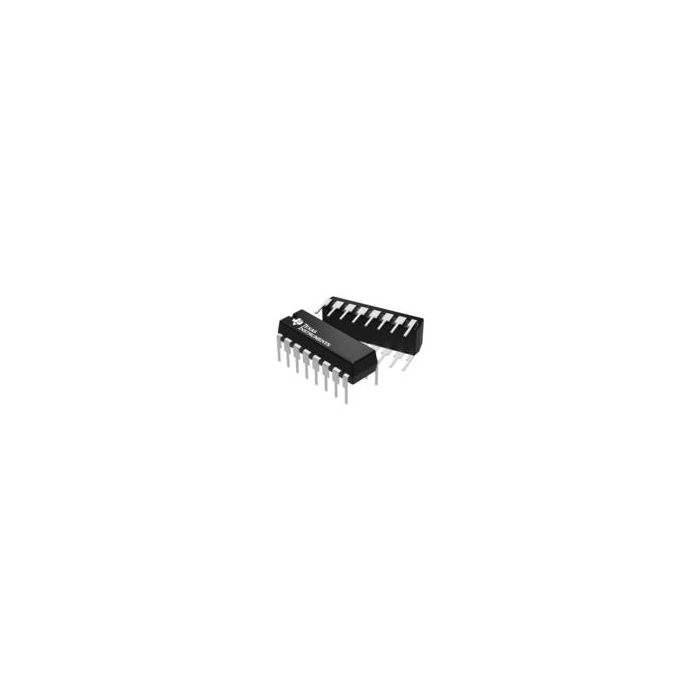

Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 16
  • Inventory 9
  • PCNs 49
  • MaskPart SN74LS194AN%
  • IntroductionDate Jan 01, 2002
  • AliasParts SN74LS194ANE4

Parametry

  • Absolute Propagation Delay Time (ns) 30
  • Direction Type Bi-Directional
  • Logic Family LS
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 26@5V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Test Temperature (°C) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Minimum Test Temperature (°C) N/A
  • Number of Count Input Enables 0
  • Number of Element Inputs 6
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 2
  • Number of Stages 4
  • Operation Mode Serial/Parallel to Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type Asynchronous
  • Supplier Temperature Grade Commercial
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 4-Bit Serial/Parallel to Parallel 16-Pin PDIP Tube
