SN74LS190N

ProducentON SemiconductorEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS190N_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS190N

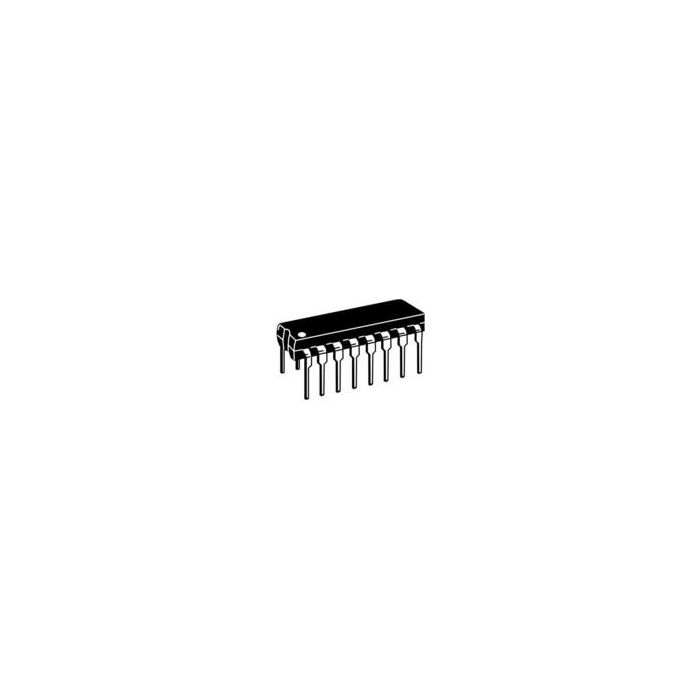

Counter Single 4-Bit Async Decade UP/Down 16-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • PCNs 17
  • MaskPart SN74LS190N%
  • IntroductionDate Jun 21, 1995
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS190N&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 52
  • Direction Type Bi-Directional
  • Logic Family LS
  • Logic Function Counter
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 36@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 2
  • Number of Element Inputs 4
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 4
  • Operation Mode UP Counter|Down Counter
  • Output Type N/A
  • Parallel Enable Input Yes
  • Preset Type Asynchronous
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type N/A
  • Supplier Temperature Grade Commercial
  • Terminal Count Output Yes
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type Decade
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Counter Single 4-Bit Async Decade UP/Down 16-Pin PDIP
