SN74LS170NG

ProducentON SemiconductorEURoHSYes (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS170NG_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS170NG

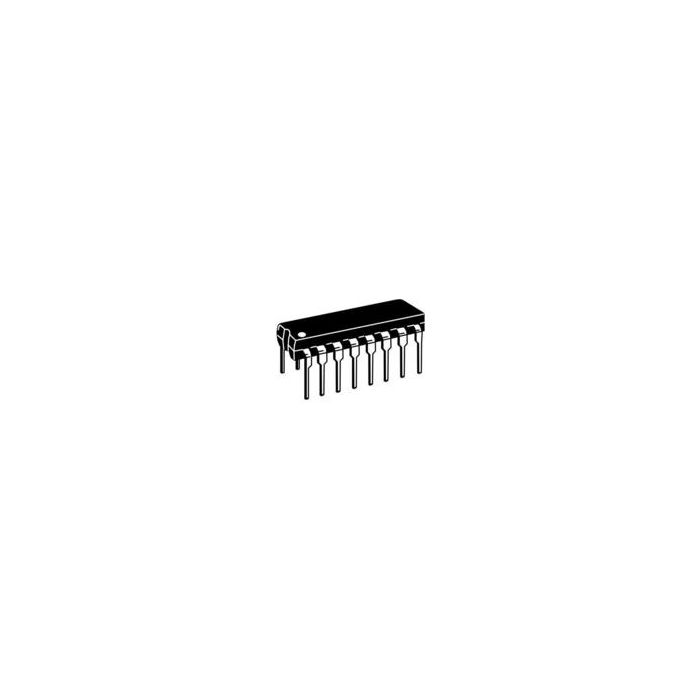

Register File Single-Element 4-CH Bipolar 16-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • PCNs 17
  • MaskPart SN74LS170NG%
  • IntroductionDate Oct 18, 1996
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS170NG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family LS
  • Logic Function Register File
  • Maximum High Level Output Current (mA) -0.1
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 45@5V
  • Minimum Operating Temperature (°C) 0
  • Number of Channels per Chip 4
  • Number of Element Inputs 4
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 1
  • Number of Output Enables per Element 1
  • Number of Selection Inputs per Element 4
  • Output Signal Type Single-Ended
  • Output Type Open Collector
  • Polarity Non-Inverting
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type N/A
  • Supplier Temperature Grade Commercial
  • Tolerant I/Os (V) N/A
  • Triggering Type N/A

Więcej informacji

Do pobrania Download
Main description Register File Single-Element 4-CH Bipolar 16-Pin PDIP
